3-Piece Threaded Ball Valve
Specifications
| Size Range NPS 1/4"- 2" | DN 8 - DN 50 |
Pressure Rating 2000 WOG |
| Inspection & Testing MSS SP-110, EN 12266 |
End Connections Threaded (ASME B1.20.1, BS21, DIN 2999/259), Socket Weld (ASME B16.11), Butt Weld (ASME B16.25) |
| Face to Face DIN 3202-M3 |
|

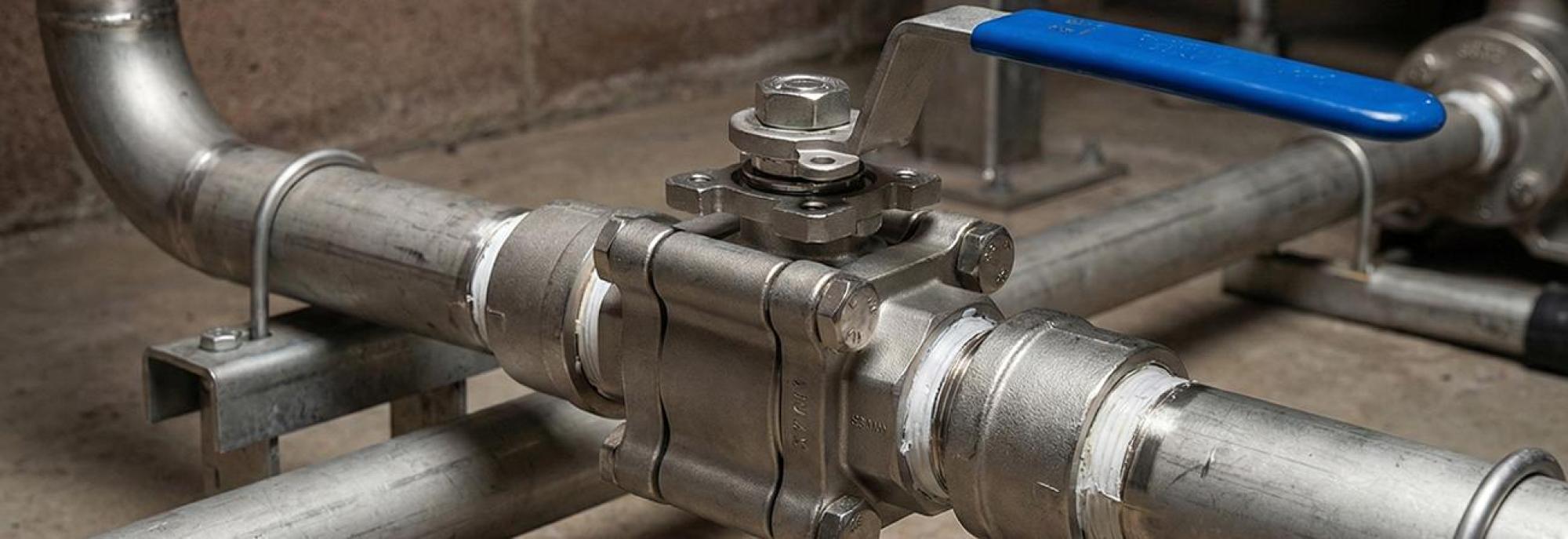

3-Piece Threaded Ball Valve
Engineered for Robustness, Precision, and Ease of Maintenance in High-Pressure Applications.
The Value Valves Series 2000 defines reliability in critical fluid control systems. Utilizing advanced dewaxing precision investment casting, this 3-piece ball valve ensures superior surface finish and structural integrity. With a pressure rating of 2000 WOG, it is designed to withstand rigorous industrial environments while offering the versatility of a 3-piece body allows for inline maintenance (swing-out design) without removing pipe connections.
Features & Benefits
Ultimate Process Safety
Features a Blow-out Proof Stem design to prevent stem ejection during pressure surges, enhancing plant safety.
Optimized Performance
The ball slot includes a Pressure Balance Hole design, preventing pressure buildup in the body cavity and extending seat life.
Precision Manufacturing
Manufactured using Dewaxing Precision Casting, ensuring consistent wall thickness and zero porosity for leak-free performance.
Operational Security
Equipped with a standard Locking Device to prevent accidental operation in critical lines.
Versatile Connectivity: Available in Threaded (NPT, BSPT, DIN), Socket Weld, and Butt Weld ends to suit diverse piping standards.
Materials of Construction
Engineered with high-grade materials to combat corrosion and wear
Body / Cap / Ball: Available in Stainless Steel CF8M (SS316), CF8 (SS304), or Carbon Steel WCB.
Seats: High-durability PTFE or Reinforced RPTFE for extended cycle life.
Stem: SS316 or SS304.
Industries Served
Chemical Processing
Oil & Gas
Water Treatment
General Utilities
OEM Skid Manufacturers
Customization Options
-
Size & Materials
Special sizes and alloys available upon request to meet specific temperature and fluid requirements. -
Jacketed Design
Maintain fluid temperature to prevent solidification or viscosity changes in pipelines. -

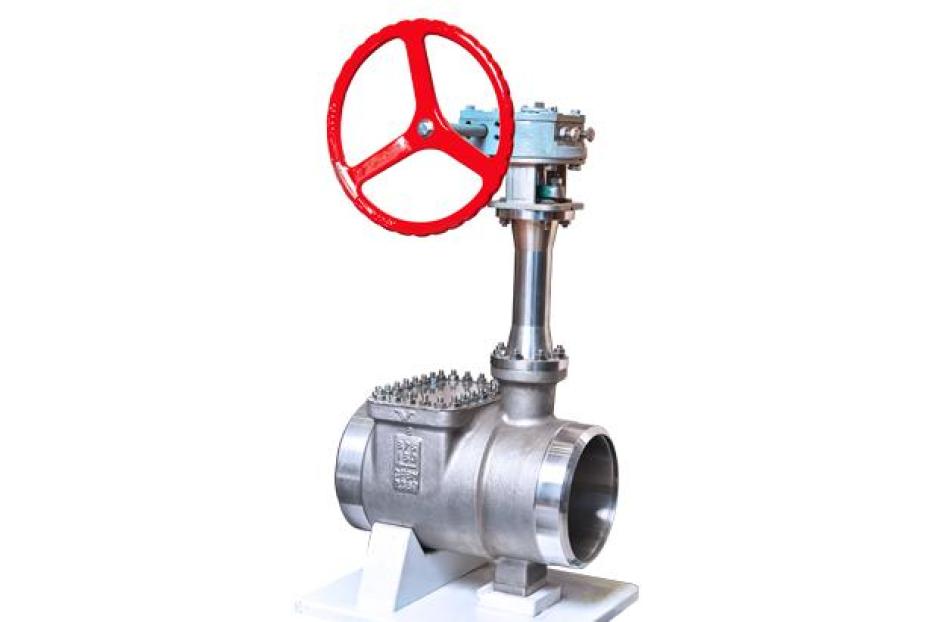

Extended Stem Design
Ideal for high/low-temperature environments—reduces thermal conduction for operator safety.
Performance & Testing Facilities
-

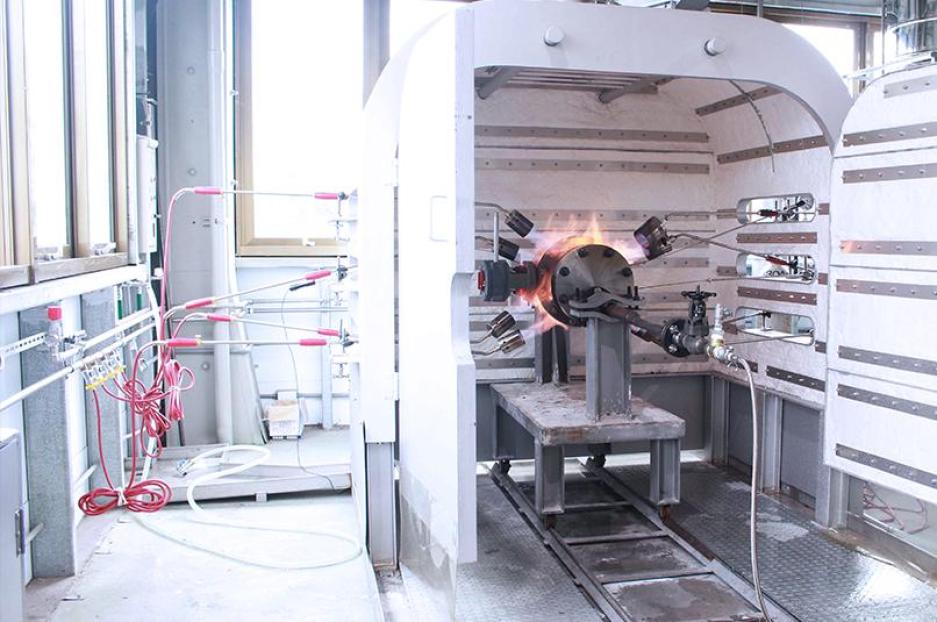

Fire Testing Laboratory
Simulates real fire scenarios to evaluate pressure resistance and fire-safe integrity.
-

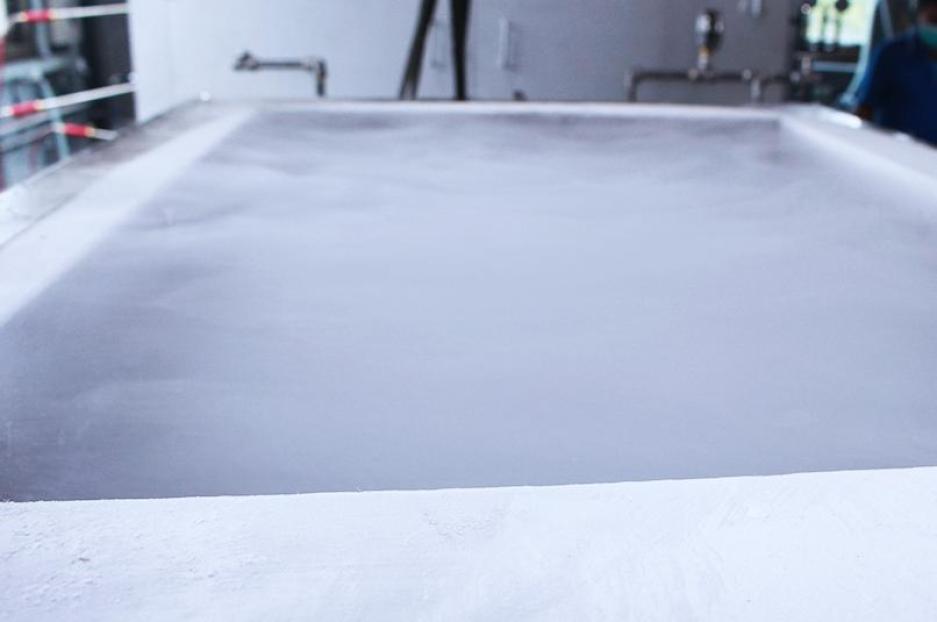

Cryogenic Testing
Performs valve functionality tests at cryogenic temperatures down to -196°C, ensuring product reliability.
-

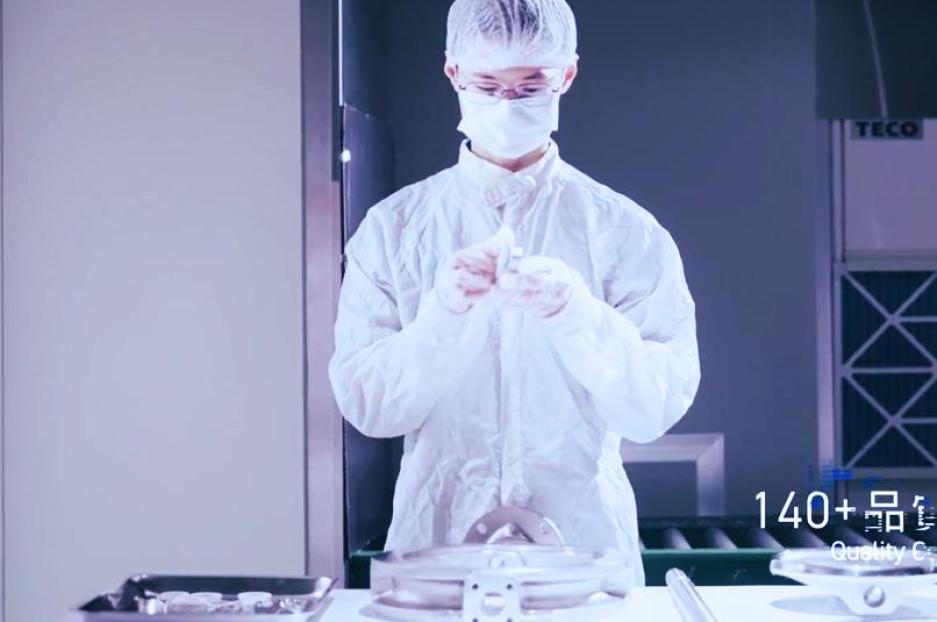

ISO-Class Clean Room
Supports oil-free cleaning and polishing for internal surfaces, meeting clean-service requirements.
-
Cycle Life Testing
Verifies long-term durability through repeated opening/closing cycles under simulated service conditions. -
Emissions Testing
Assesses fugitive emissions in control valves under volatile or hazardous fluid environments. -

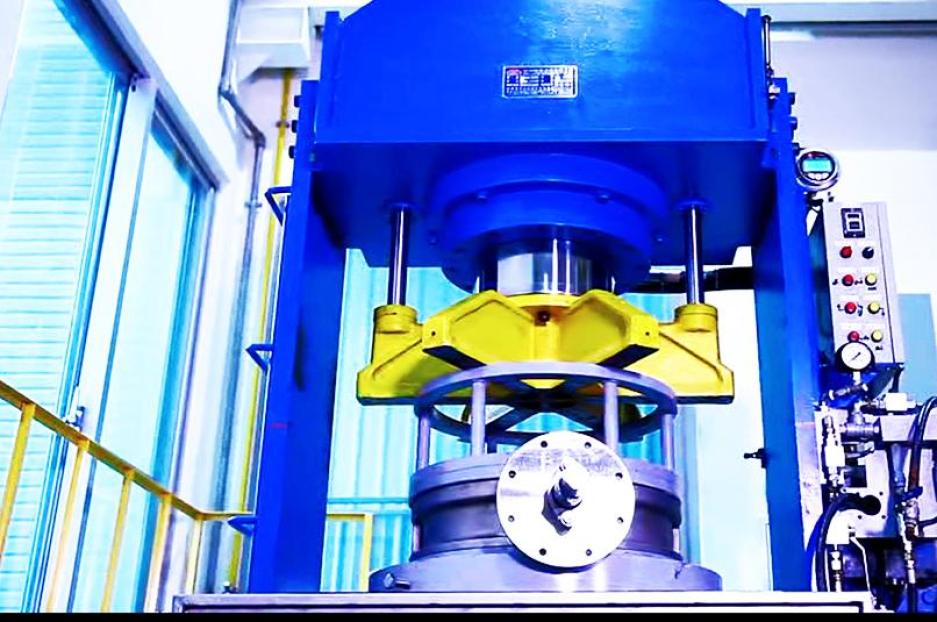

Pressure Testing
All valves undergo full hydrostatic testing to meet both international standards & customer specifications.
