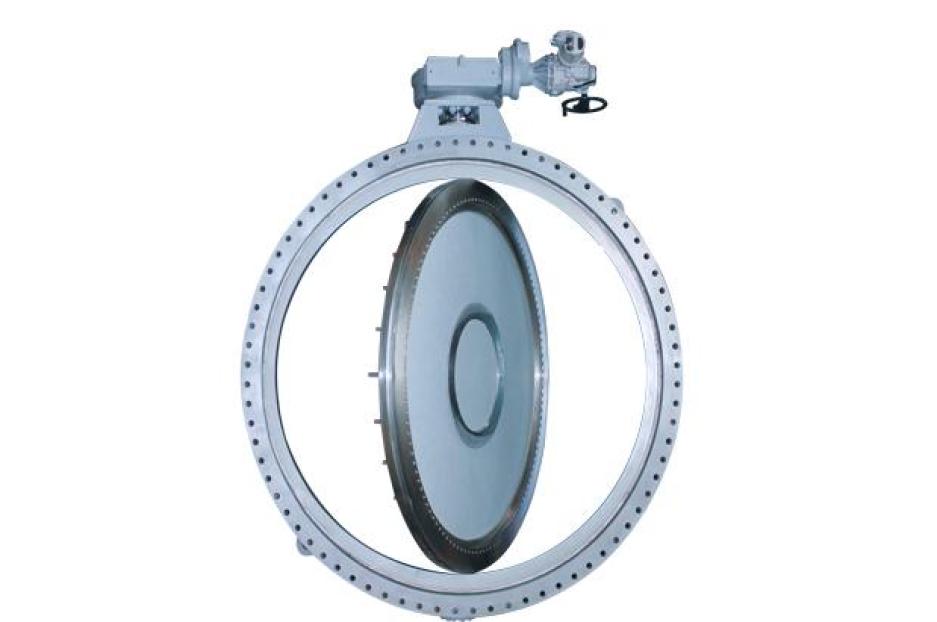

Butt Weld Butterfly Valve for Cryogenic Service
Size Range: 4"- 24"
Temp. Ratings: -196°C to +760°C Pressure Ratings:150 LB
Engineered for Extreme Low Temperatures
The Value Valves Butt Weld Butterfly Valve is a cryogenic-ready solution with Engineered for Extreme Low Temperatures, engineered specifically for the transportation and control of low-temperature and cryogenic media. Even under extremely low temperatures and harsh operating conditions, the valve consistently delivers high flow capacity, excellent sealing performance, and long service life.
Designed for Low-Temperature and Cryogenic Media
This Butt Weld Butterfly Valve is optimized for cryogenic pipelines and low-temperature process systems, making it suitable for:
- Transportation and control of low-temperature media
- Gas processing and treatment systems
- Cryogenic storage and regasification facilities
Typical media include:
- LNG (Liquefied Natural Gas)
- Nitrogen (N₂)
- Oxygen (O₂)
- Argon (Ar)
- Helium (He)
The valve maintains reliable operation under frequent cycling, high differential pressure, and extreme temperature gradients.
Cryogenic Valve Construction for Reliable Performance in Harsh Environments

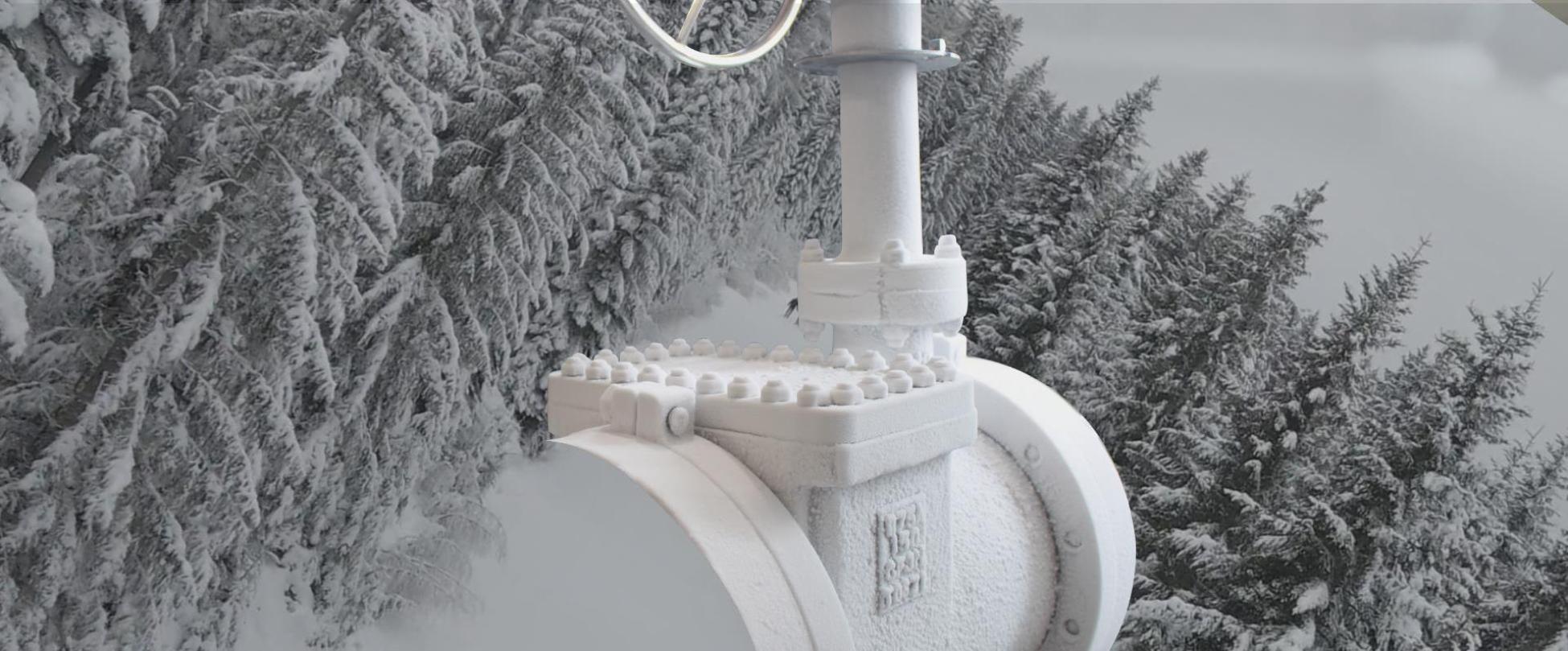

Extended Bonnet Design for Stem and Packing Protection
The valve features an extended bonnet to effectively isolate the cryogenic zone from the stem packing area. This design minimizes the impact of extreme cold on sealing materials and actuating components, significantly extending service life and ensuring safe operation.
Cryogenic-Grade Materials and Proven Manufacturing
All wetted components are selected and processed according to cryogenic requirements. Materials and construction are verified to prevent brittle fracture and structural failure, ensuring reliable toughness and strength at temperatures down to –196°C.

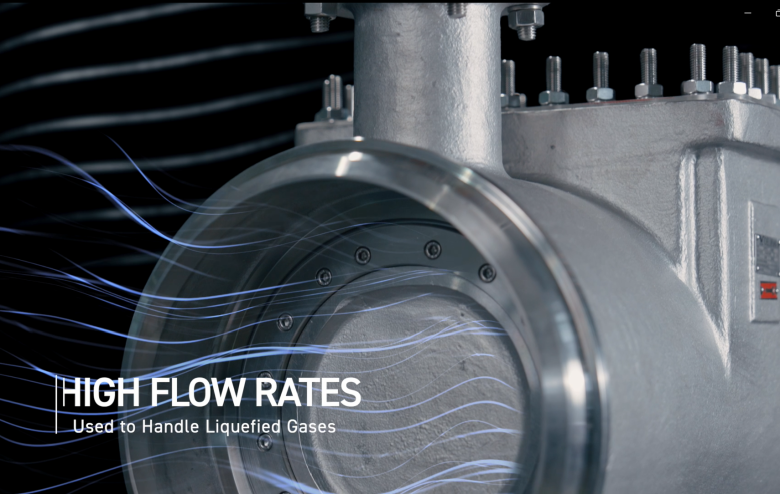

High Flow Capacity, Low Pressure Drop, and Tight Shut-Off
The flow path and disc profile are optimized to provide high Cv (flow capacity) with low pressure drop, while maintaining tight shut-off. Even under repeated thermal cycling and vibration, the valve offers stable sealing performance and predictable operating torque.
Ideal Choice for LNG and Gas Processing Applications
Thanks to its dedicated cryogenic design, this valve is widely used in:

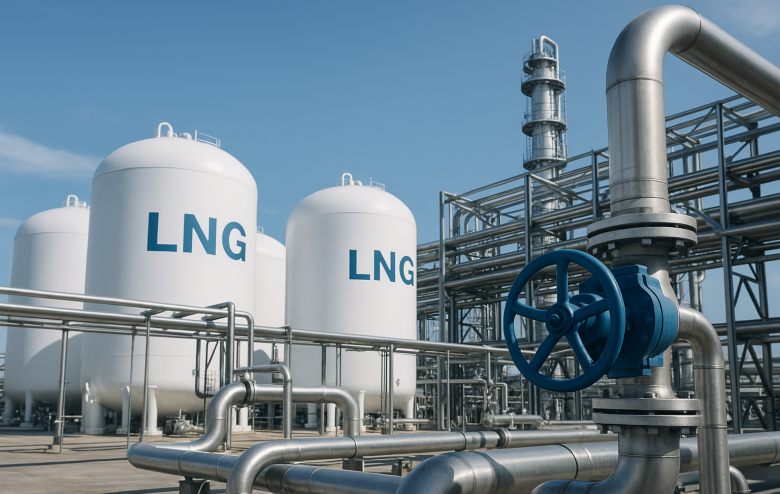

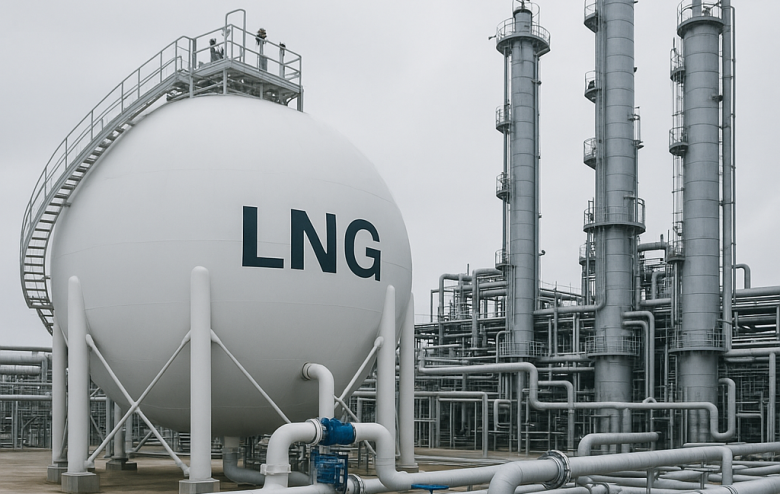

- LNG receiving terminals and storage tanks
- LNG regasification units and cold energy systems
- Industrial gas processing, separation, and purification plants
- Cryogenic storage, distribution, and pressure control systems
The Butt Weld Butterfly Valve enables end users to safely and efficiently transport and store cryogenic media, ensuring reliable system operation in the most demanding environments.
A Dedicated Butt Weld Butterfly Valve for Cryogenic Service
With its Engineered for Extreme Low Temperatures, high flow capacity, excellent sealing, and long service life, the Value Valves Butt Weld Butterfly Valve is a trusted solution for LNG, nitrogen, oxygen, argon, helium, and other cryogenic media.
It provides a robust, safe, and efficient flow control solution for low-temperature and cryogenic applications across the energy and gas industries.
Key Certifications
|
TÜV Rheinland |
PED(H) (Pressure Equipment Directive) ATEX 94/9/EC – Explosion-proof Compliance ISO 10497 / API 607 – Fire-safe Testing API 609 Monogram, ISO 10497 ISO 15848-1 / ISA 93.00.01 – Fugitive Emissions Testing BS 6364 – Cryogenic Testing IEC 61508-1 SIL 3 – Functional Safety
|
|
TSG |
TSG D7002-2006 – China Special Equipment Certification |

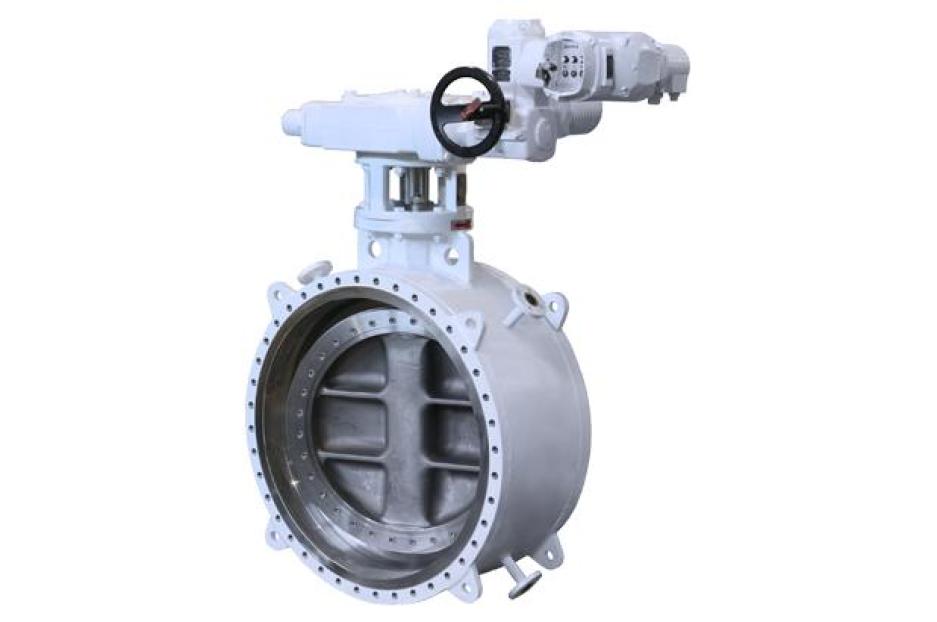

Features & Benefits

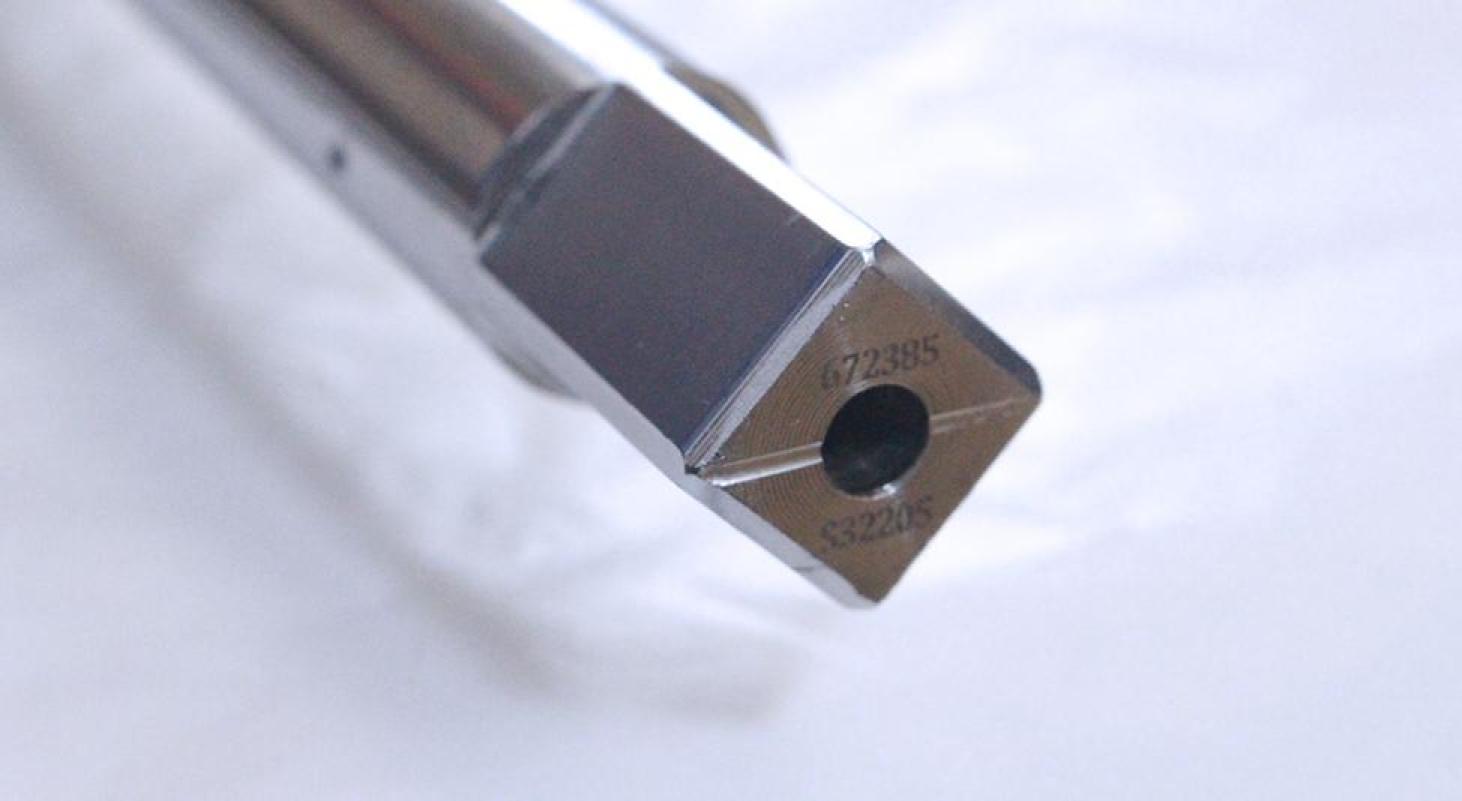

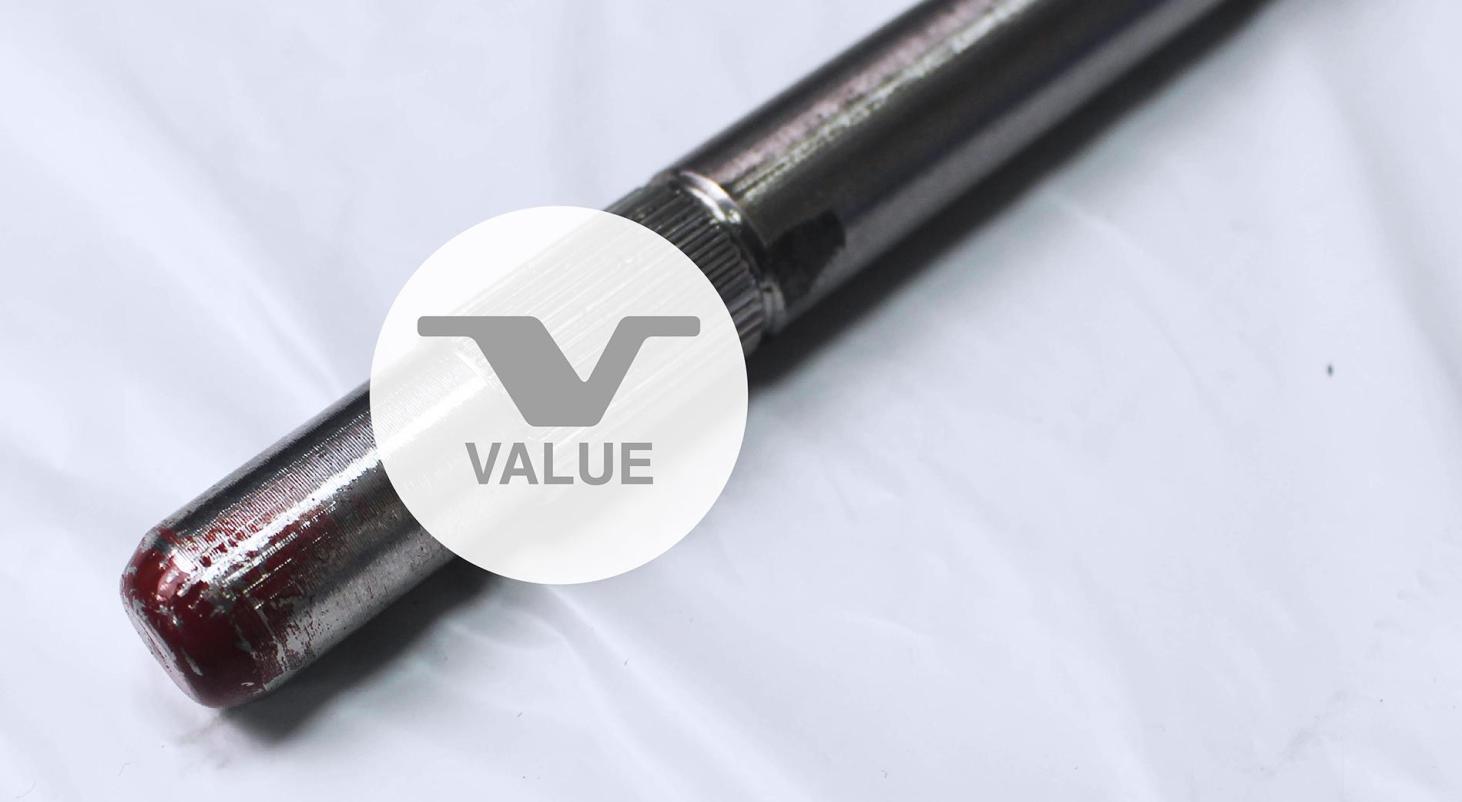

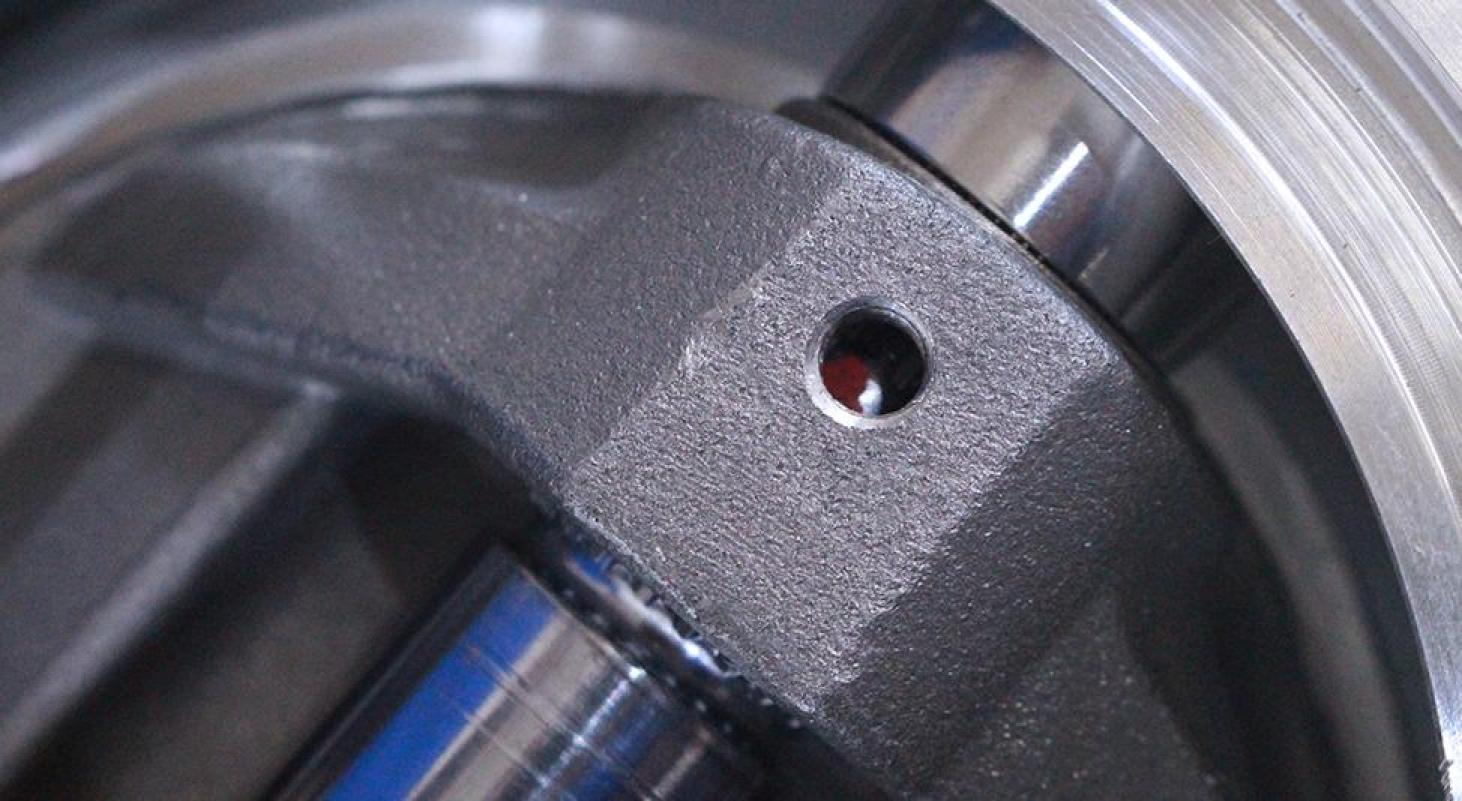

SHAFT STRENGTH UPGRADED

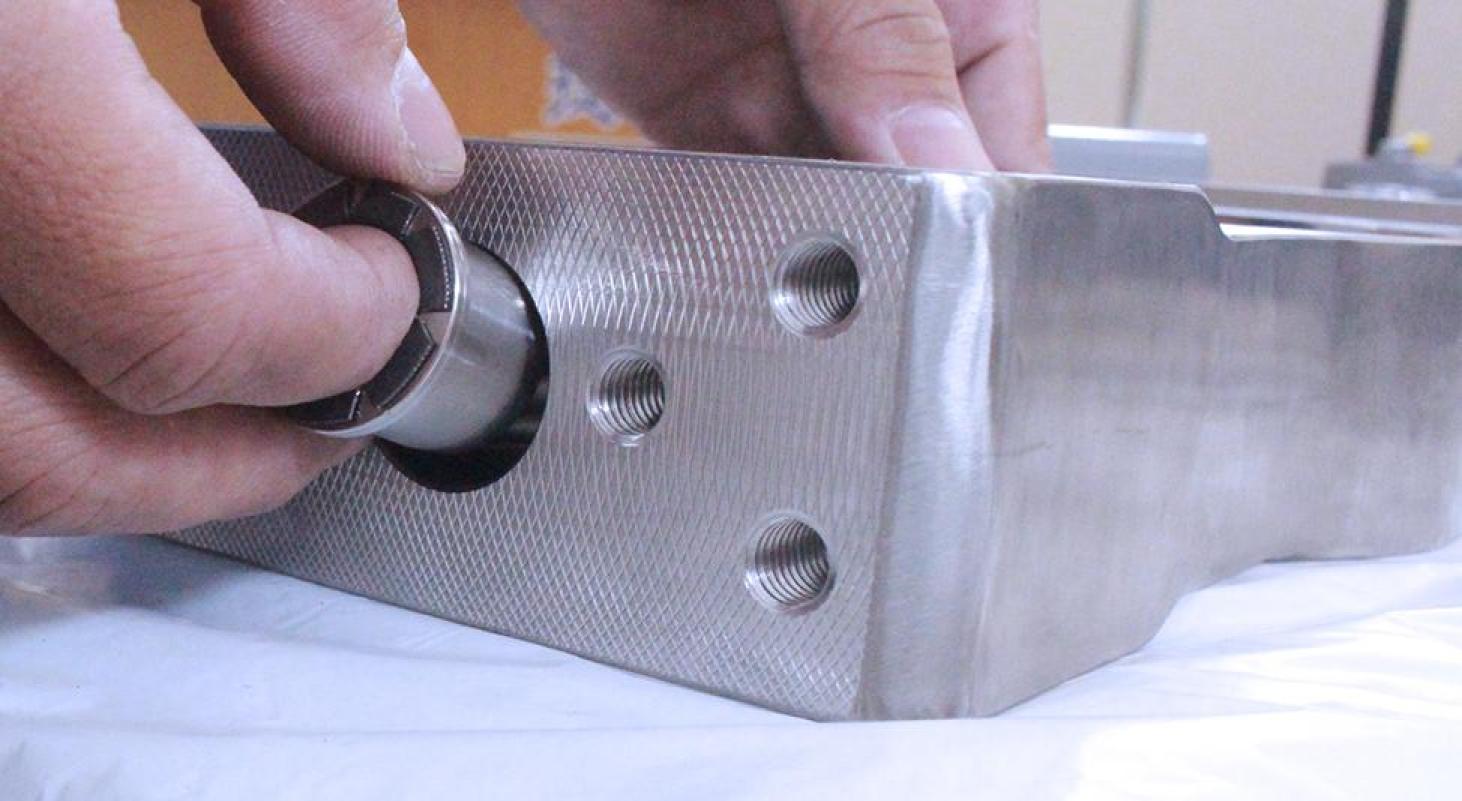

DUST PROOF DESIGN

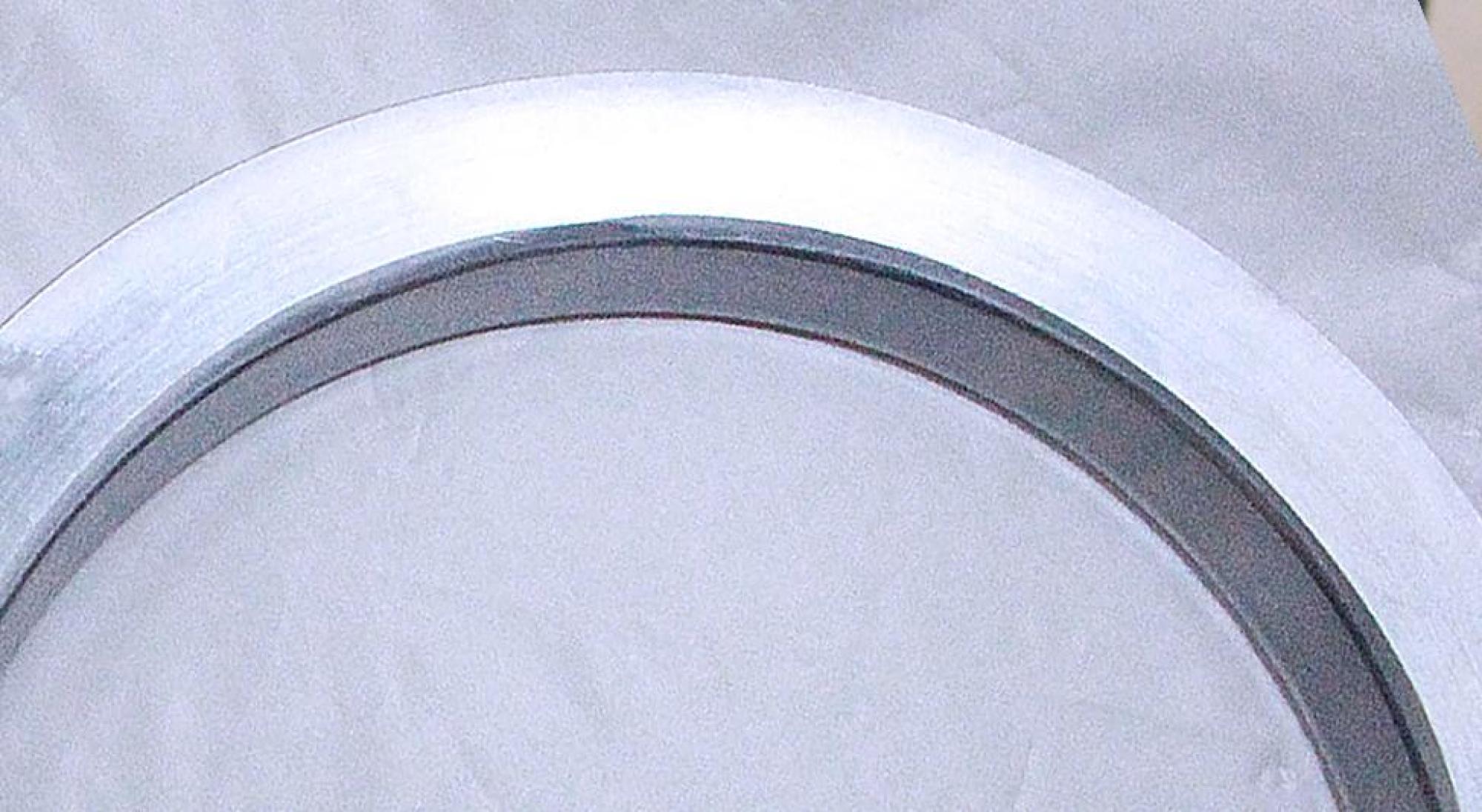

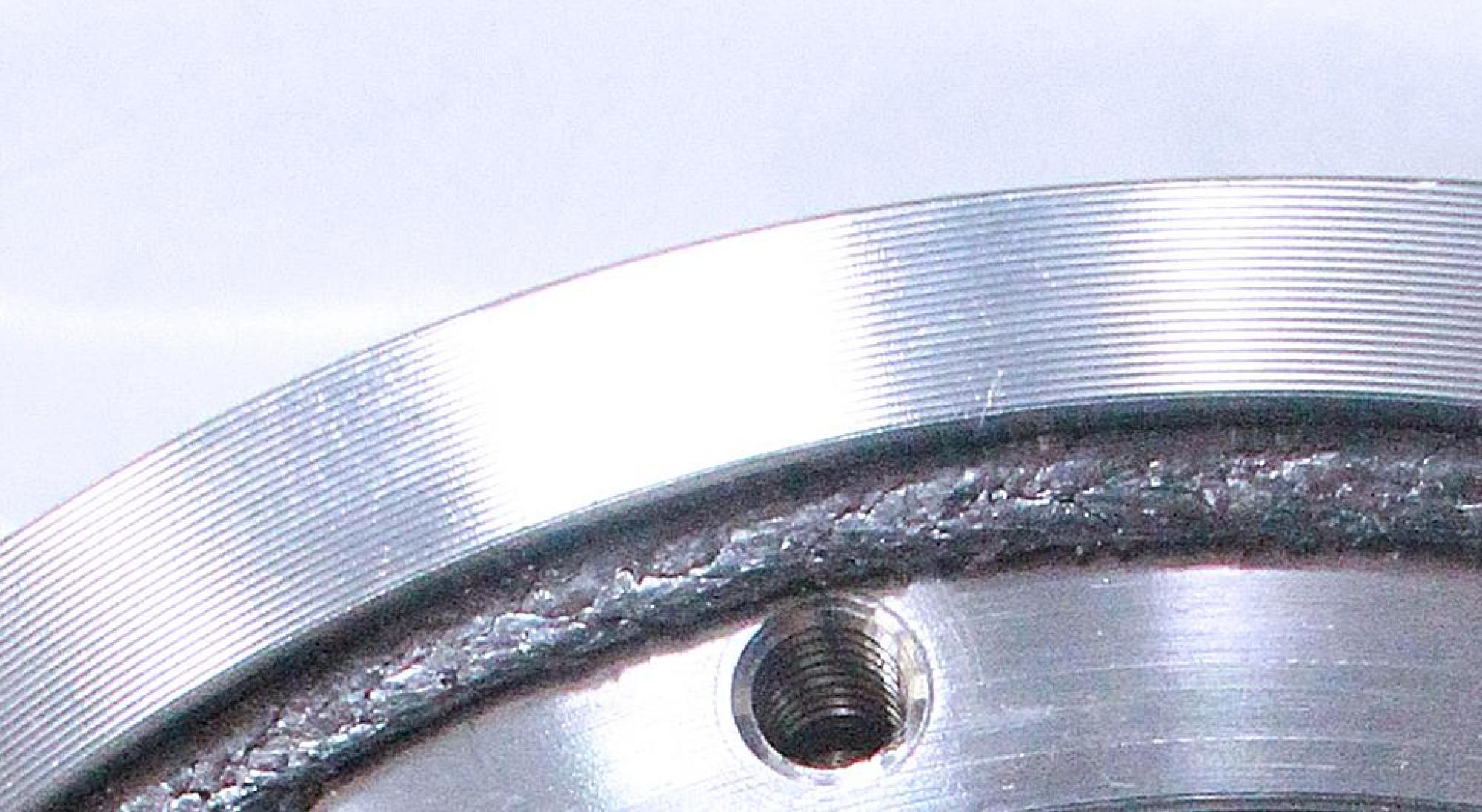

SEALING DESIGN
We provides
metal seat as well.-196~760 ℃ (-321~1400 ℉ )
DISC HARD FACE
BLOW-OUT PROTECTION
DISC INDICATION
Specifications

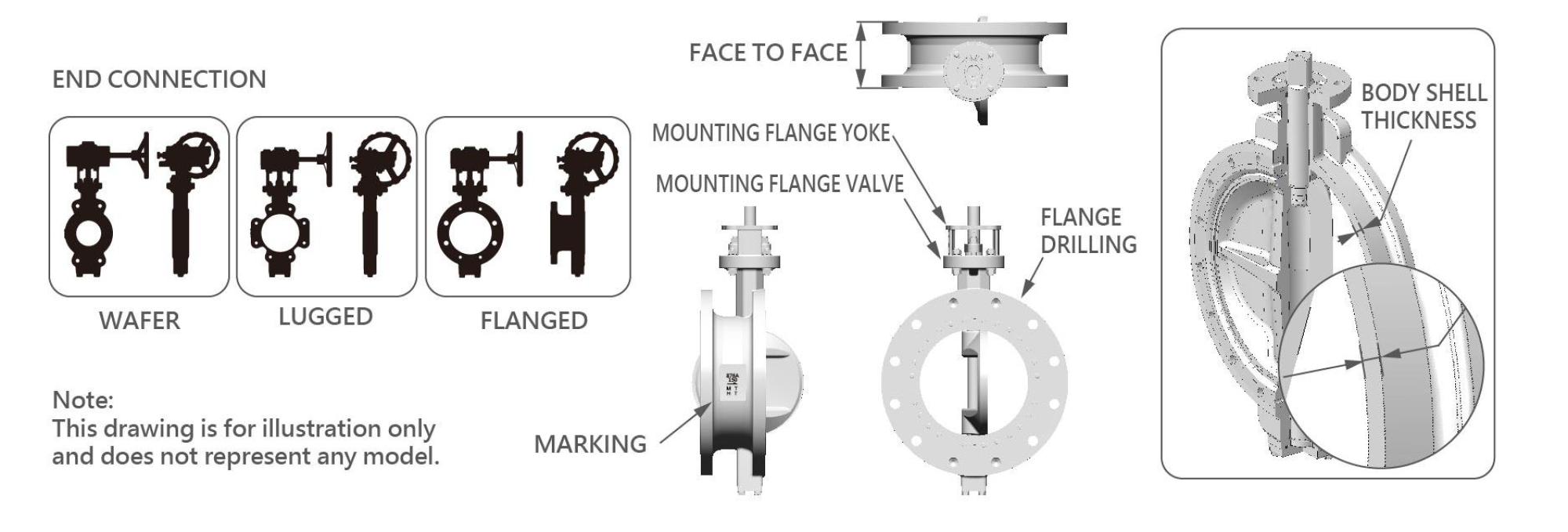

| Size Range 4"- 24" | DN 100 - DN 600 |
Face-to-Face API 609 | ISO 5752 | ASME B16.10 |
| Pressure Ratings -196°C to +760°C (-320°F to +1400°F) |
Marking Standard MSS-SP-25 |
| Pressure Ratings 150 LB |
Design Flange BUTT WELDING - ASME B16.25 SHORT PATTERN - ASME B16.5, EN 1092 |
| Body Styles Wafer | Lug | Double Flanged |
Pressure Testing ISO 5208 | BS 6364 |
| Seat Type Metal Seat |
Fire Testing API 607 | ISO 10497 |
| Body Wall Thickness ASME B16.34 |
Fugitive Emissions ANSI/ISA-SP-93 | TA-Luft | ISO 15848 | API 641 |
| Operator Mounting Flange ISO 5211 |
Explosion-proof ATEX 94/9/CE Group II Category 2 GD |
| Design Flange ASME B16.34 | ASME B16.5 | EN 593 |
Leakage Class ANSI FCI 70-2-2003 Table 1 CLASS V ISO 5208 Rate A |
Solutions
Customization Options
-
Size & Materials
Special sizes and alloys available upon request to meet specific temperature and fluid requirements. -
Jacketed Design
Maintain fluid temperature to prevent solidification or viscosity changes in pipelines. -
Extended Stem Design
Ideal for high/low-temperature environments—reduces thermal conduction for operator safety.
Performance & Testing Facilities
-

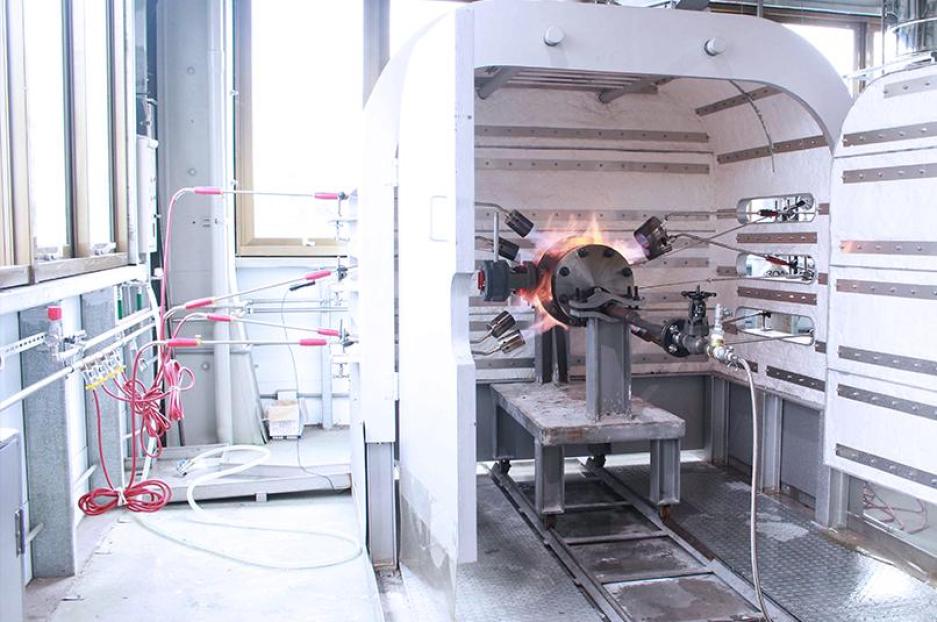

Fire Testing Laboratory
Simulates real fire scenarios to evaluate pressure resistance and fire-safe integrity.
-

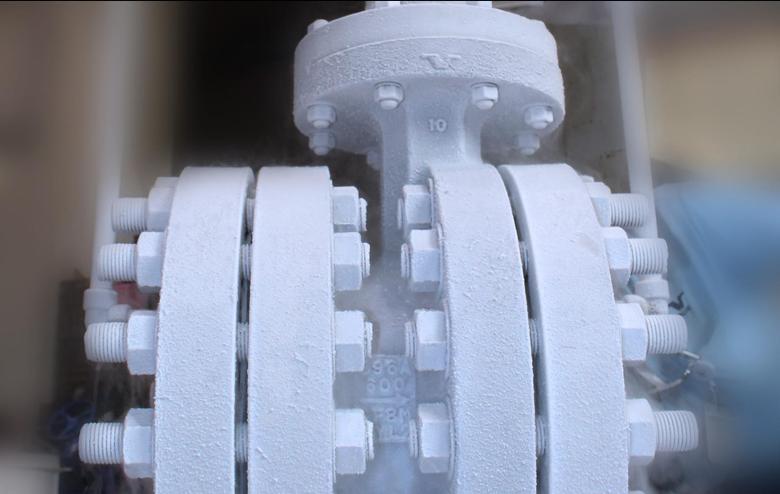

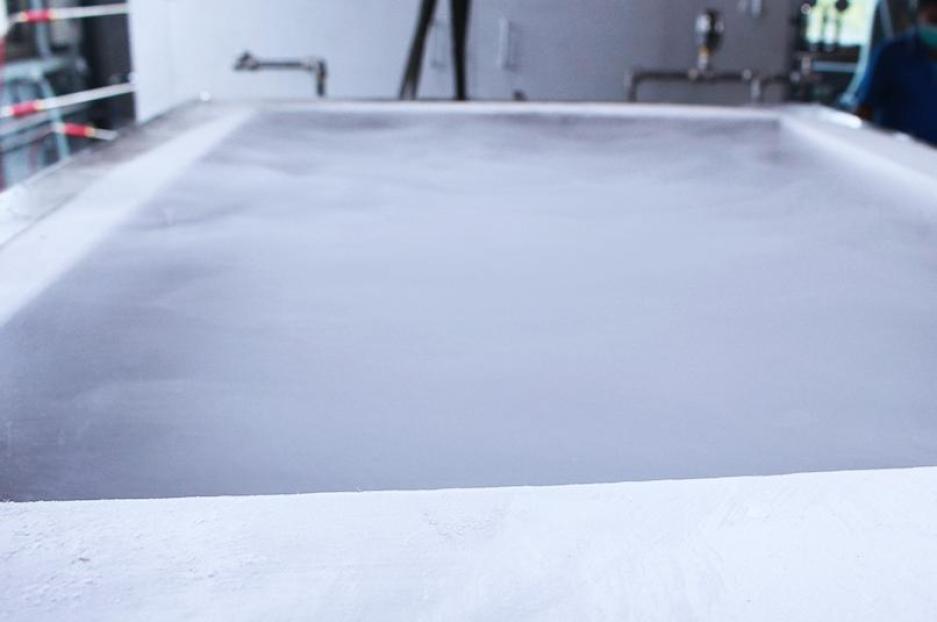

Cryogenic Testing
Performs valve functionality tests at cryogenic temperatures down to -196°C, ensuring product reliability.
-
ISO-Class Clean Room
Supports oil-free cleaning and polishing for internal surfaces, meeting clean-service requirements.
-
Cycle Life Testing
Verifies long-term durability through repeated opening/closing cycles under simulated service conditions. -

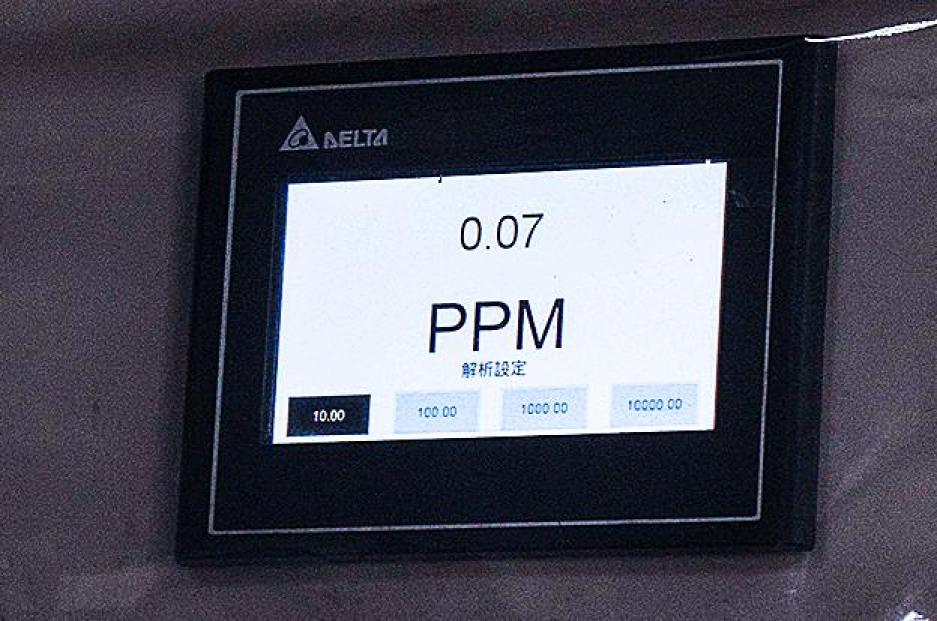

Emissions Testing
Assesses fugitive emissions in control valves under volatile or hazardous fluid environments. -

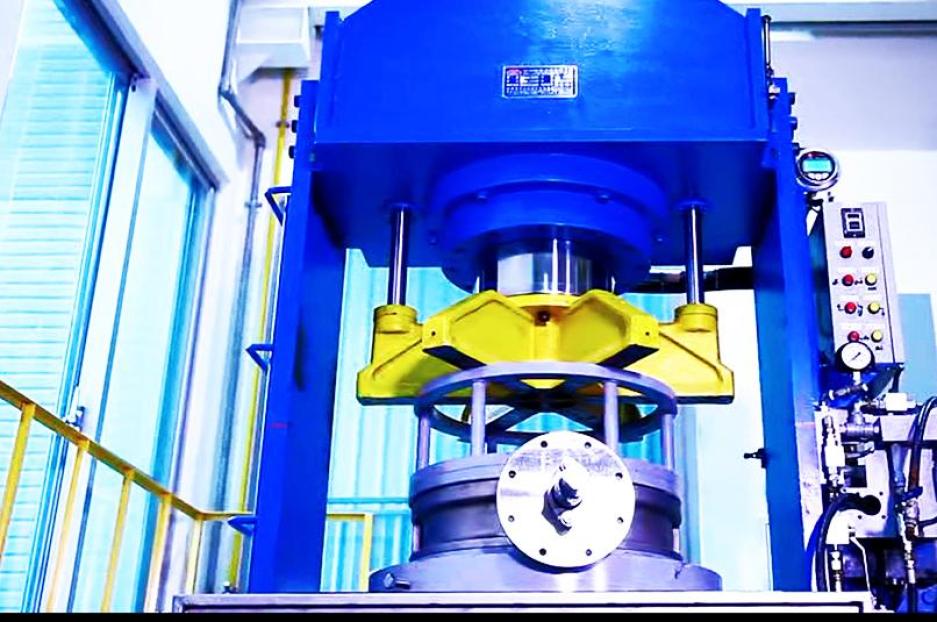

Pressure Testing
All valves undergo full hydrostatic testing to meet both international standards & customer specifications.
