AWWA Butterfly Valve
Zero Leakage | Superior Corrosion Resistance | Low Operating Torque | Proprietary Rubber Seat Technology
Certified by ABS and CR
Rubber seats subjected to high-voltage spark testing to ensure complete pinhole-free integrity.
Certified by ABS and CR
Rubber seats subjected to high-voltage spark testing to ensure complete pinhole-free integrity.
Water
water treatment
Seawater cooling
Exhaust
Condenser water systems

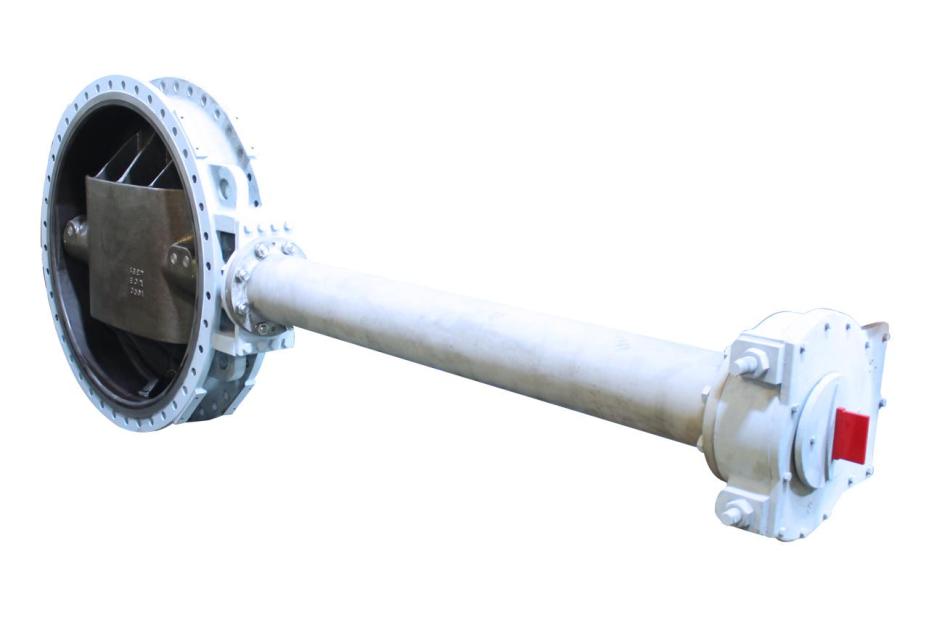

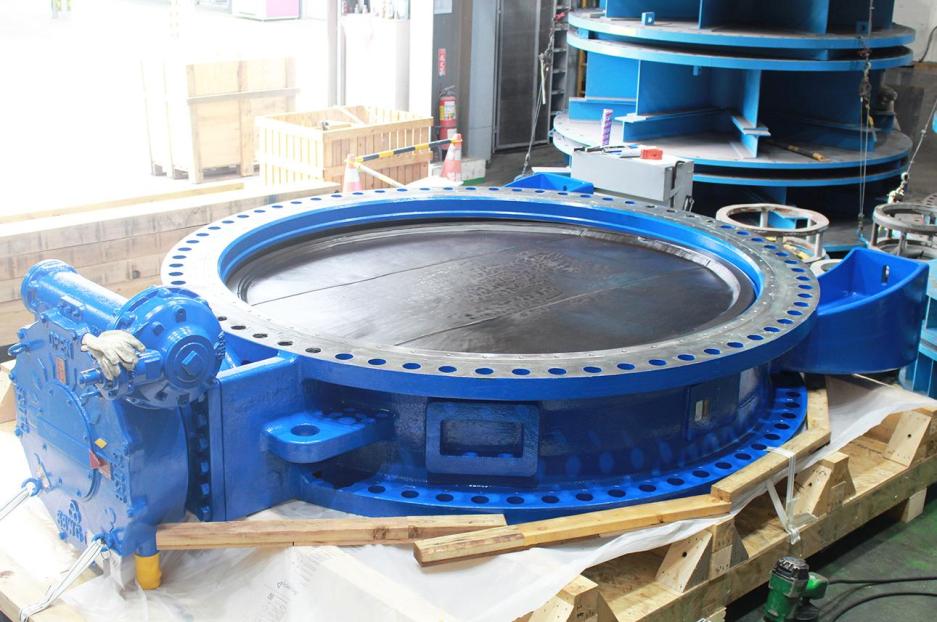

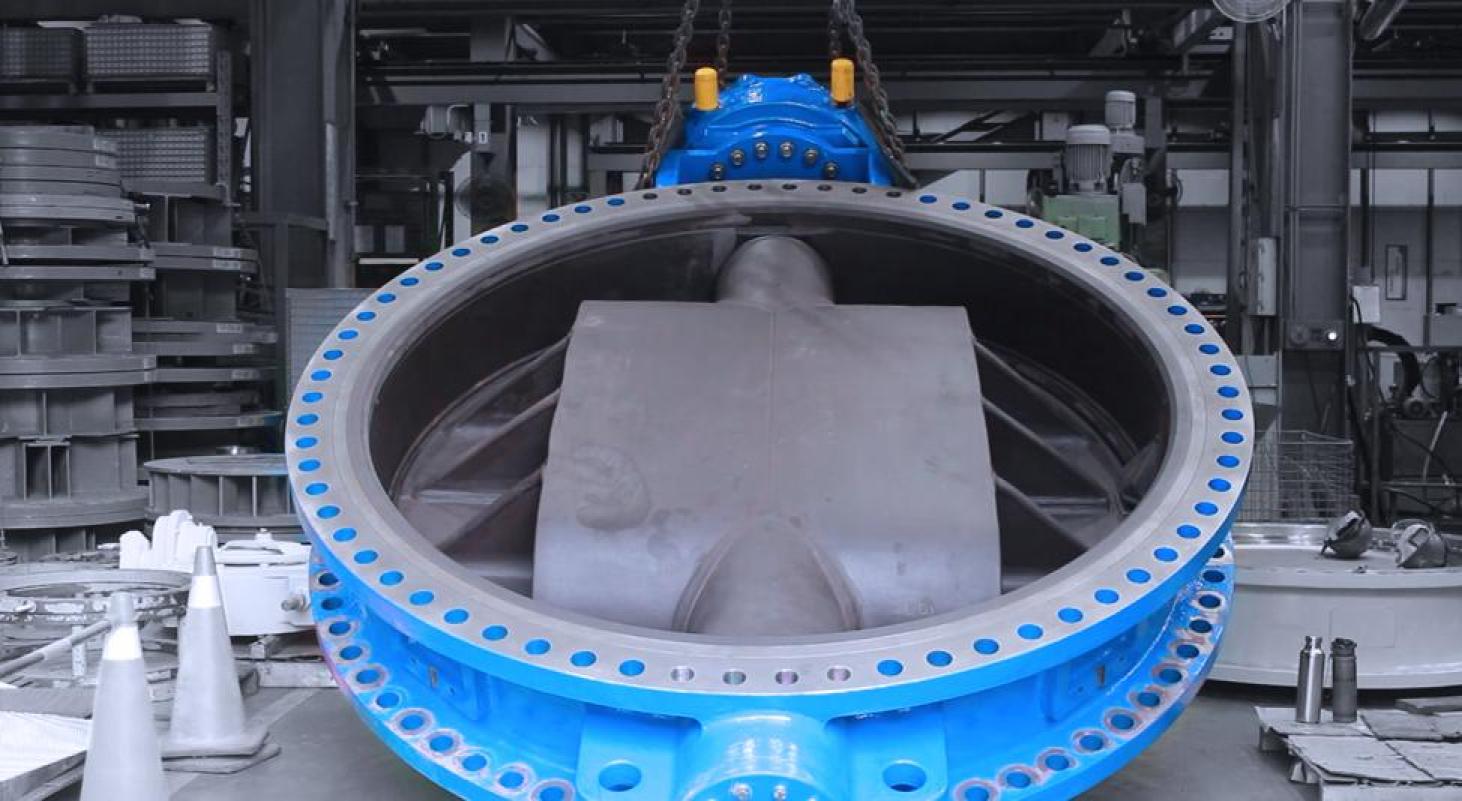

VF-264 AWWA Double Flanged Butterfly Valve
Certifications
- Over 10 international quality accreditations
- 140 product type certifications
- Maximum manufacturing capability: DN 3600 (144")
- 45+ years of valve engineering and manufacturing experience
- Global supply to over 45 countries
|
TUV Rheinland |
Pressure Equipment Directive PED(H) 97/23/EC |
|
CRN |
Canadian Registration Number |
Features & Benefits
Maximum manufacturing capability | 2600 mm

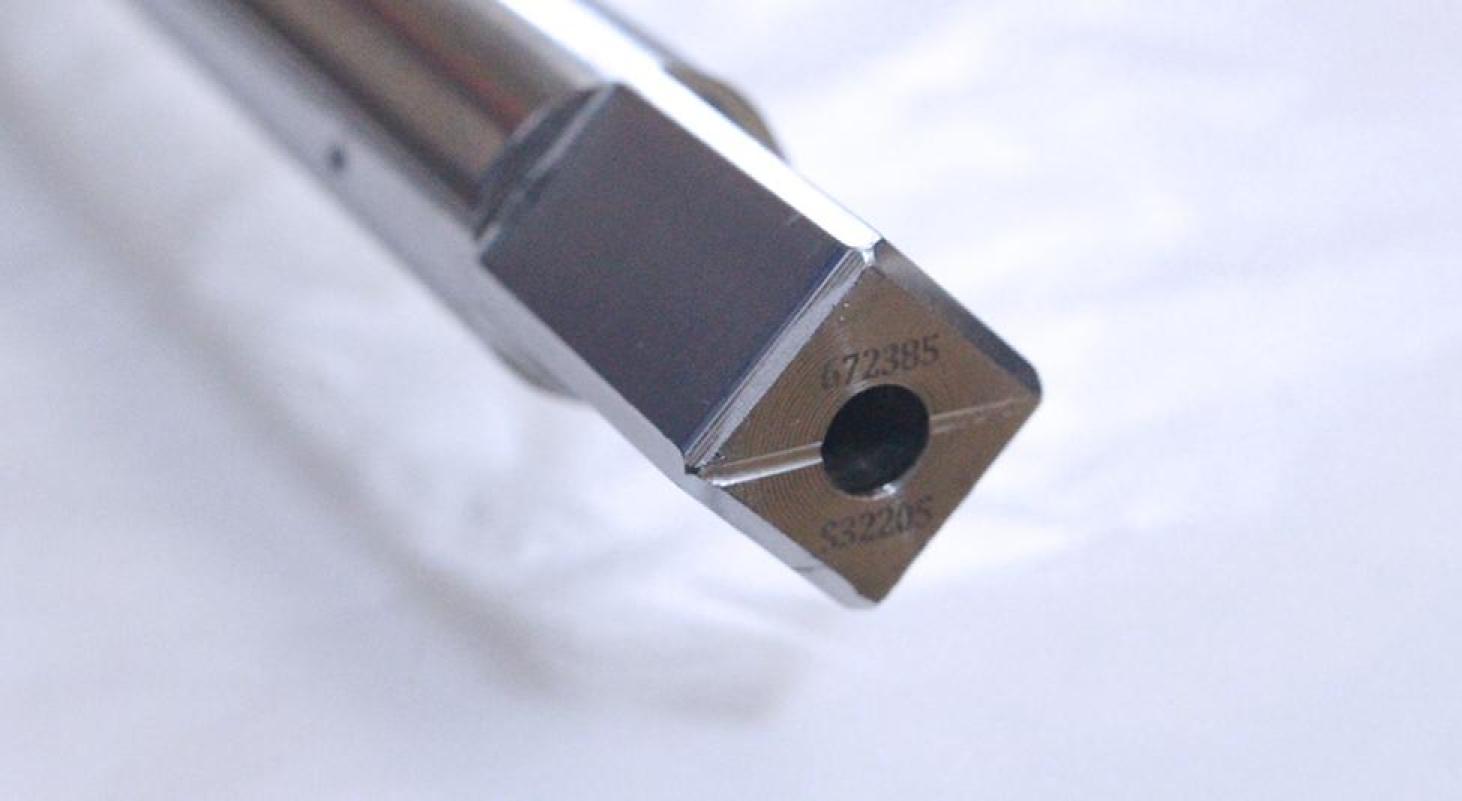

Shaft
Self-Lubricating Bearings
。
Customizable Rubber Seat Options
Rubber Seat

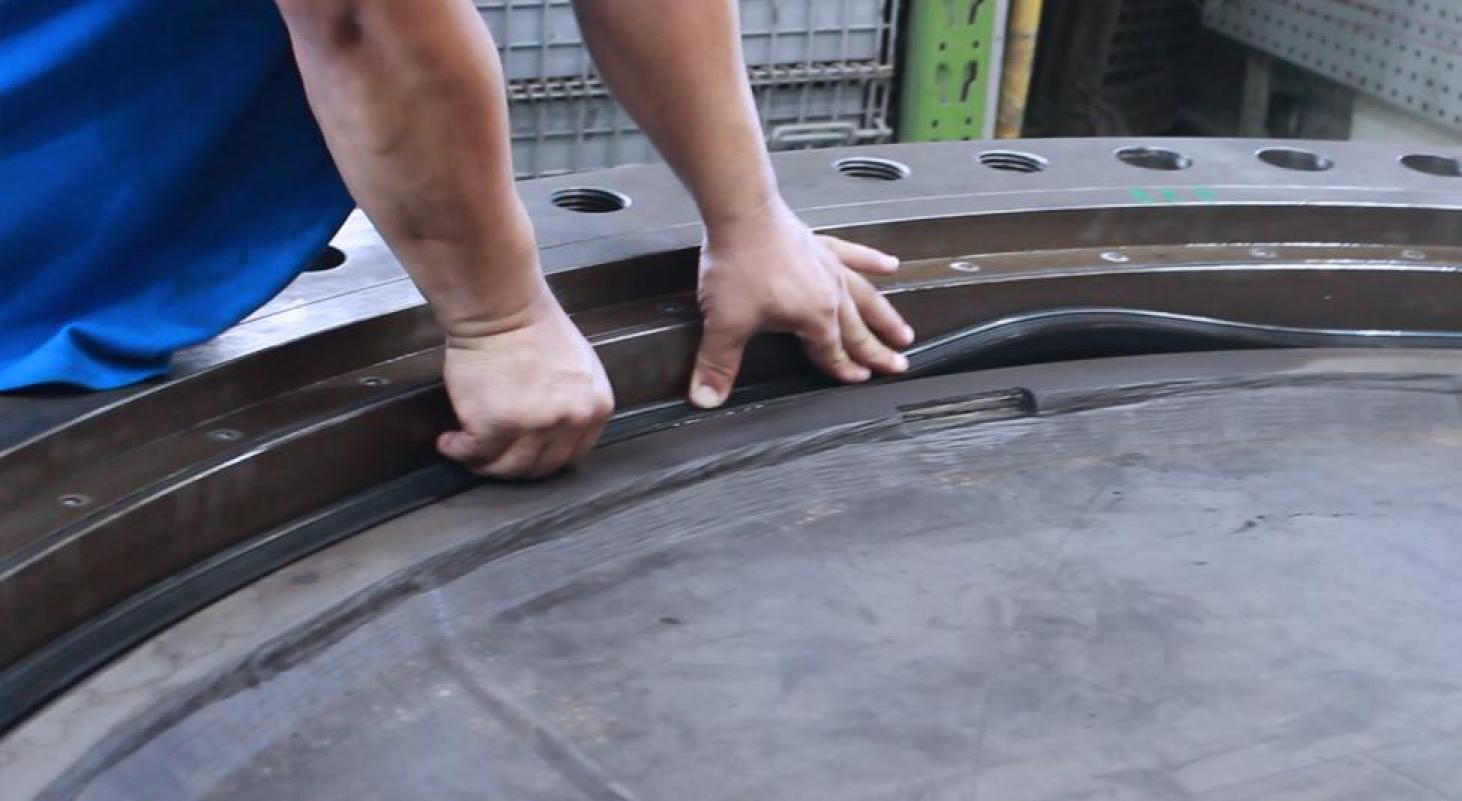

Service-Friendly Seat Replacement
The valve sizes 30” and up the seat ring could be replaced without remove the valve from pipeline.
Disc Indication
Bi-direction tight shut off
Engineered for full-rated sealing in both flow directions, enhancing installation flexibility

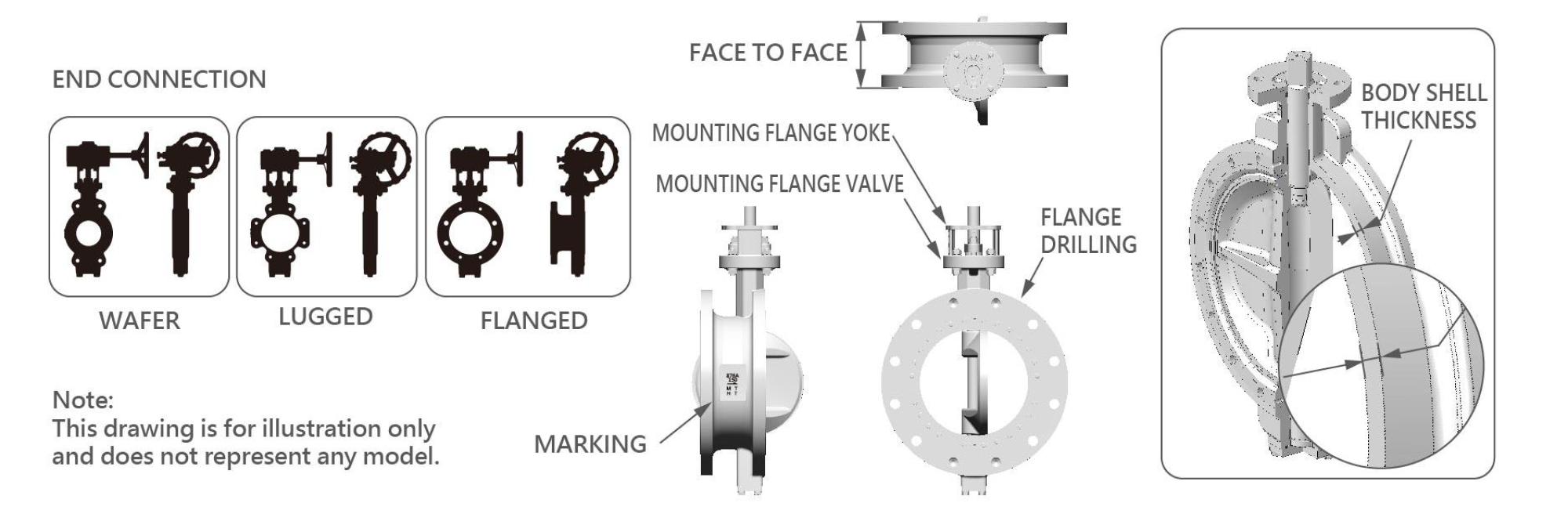

Specifications
Technical specifications are for reference only.
Value Valves reserves the right to modify product design without prior notice.
| Size Range 14"- 104" | DN 350 - DN 2600 |
Face-to-Face AWWA C504 (72” below) (1800mm below) AWWA C516 (78” above) (2000mm above) |
| Tempture Range -20°C - 120 °C | -4°F - 248°F |
Marking Standard MSS-SP-25 |
| Pressure Ratings AWWA Pressure Classes 25B AWWA Pressure Classes 75B AWWA Pressure Classes 150B |
Design Flange AWWA C516 (78” above) (2000mm above)
|
| Body Styles Double Flanged |
Testing Standard AWWA C516 (78” above) (2000mm above)
|
| Seat Type Soft Seat |
|
| Body Wall Thickness DAWWA C504 (72” below) (1800mm below) AWWA C516 (78” above) (2000mm above) |
|
|
Operator Mounting Flange
ISO 5211 |
|
| Design Flange AWWA C504 (72”below) (1800mm below) AWWA C516 (78” above)(2000mm above) |
Customization Options
Application
Customization Options
-
Size & Materials
Special sizes and alloys available upon request to meet specific temperature and fluid requirements. -
-

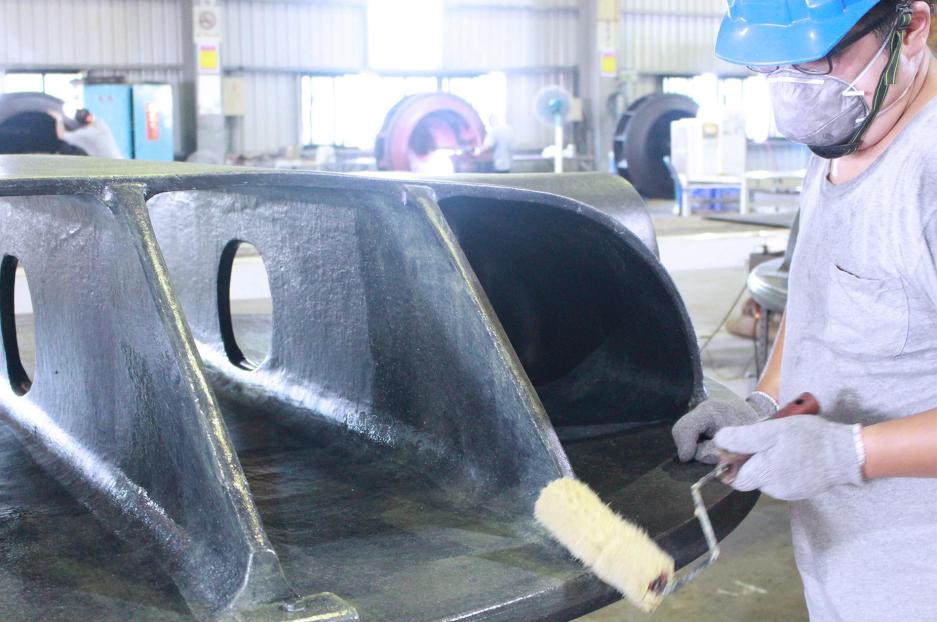

Full-Lined Rubber Disc
Disc fully covered with rubber for maximum corrosion resistance in highly aggressive fluids, also known as a fully lined rubber disc.
Performance & Testing Facilities
-

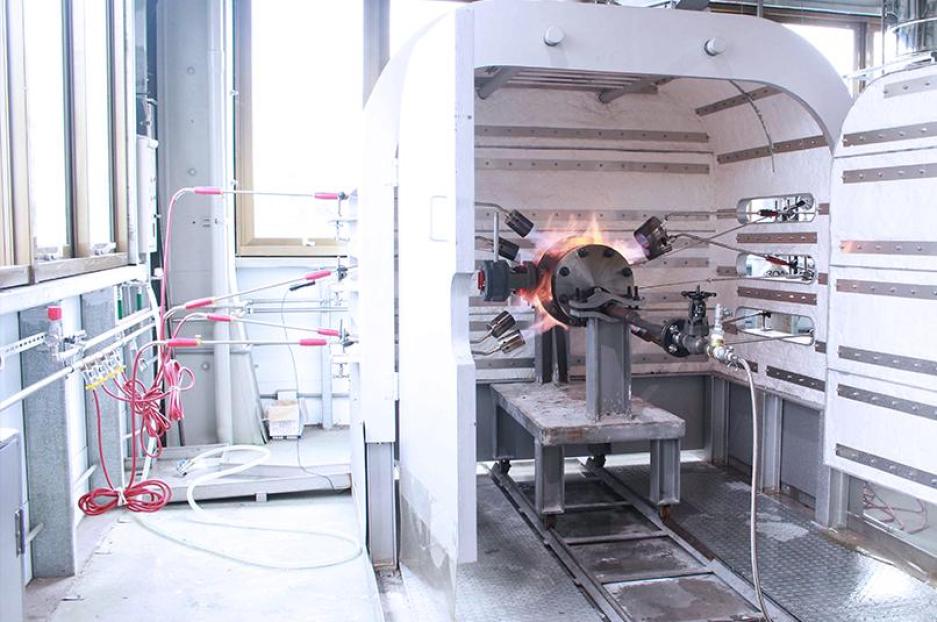

Fire Testing Laboratory
Simulates real fire scenarios to evaluate pressure resistance and fire-safe integrity. -

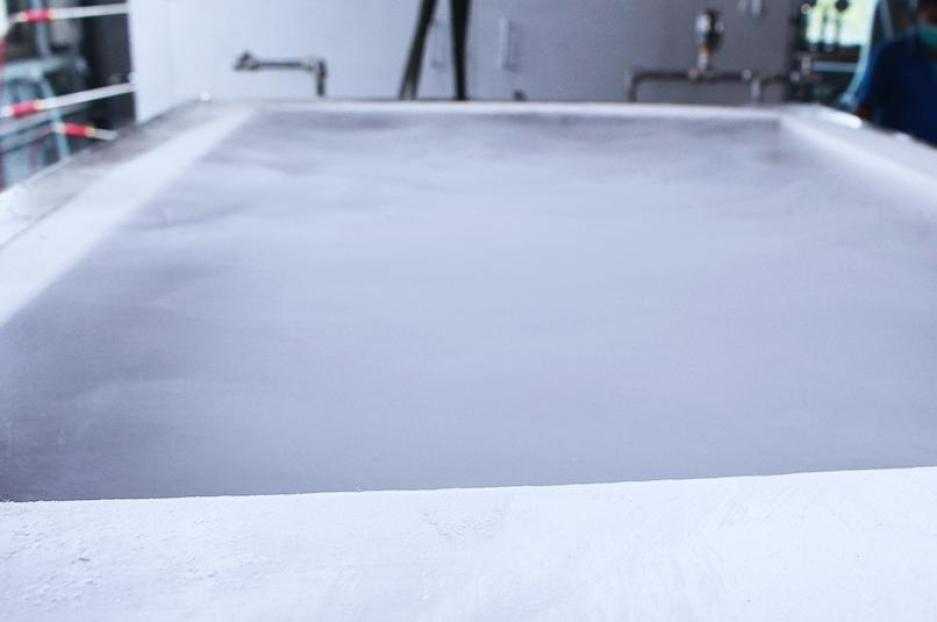

Cryogenic Testing
Performs valve functionality tests at cryogenic temperatures down to -196°C, ensuring product reliability.
-
ISO-Class Clean Room
Supports oil-free cleaning and polishing for internal surfaces, meeting clean-service requirements.
-

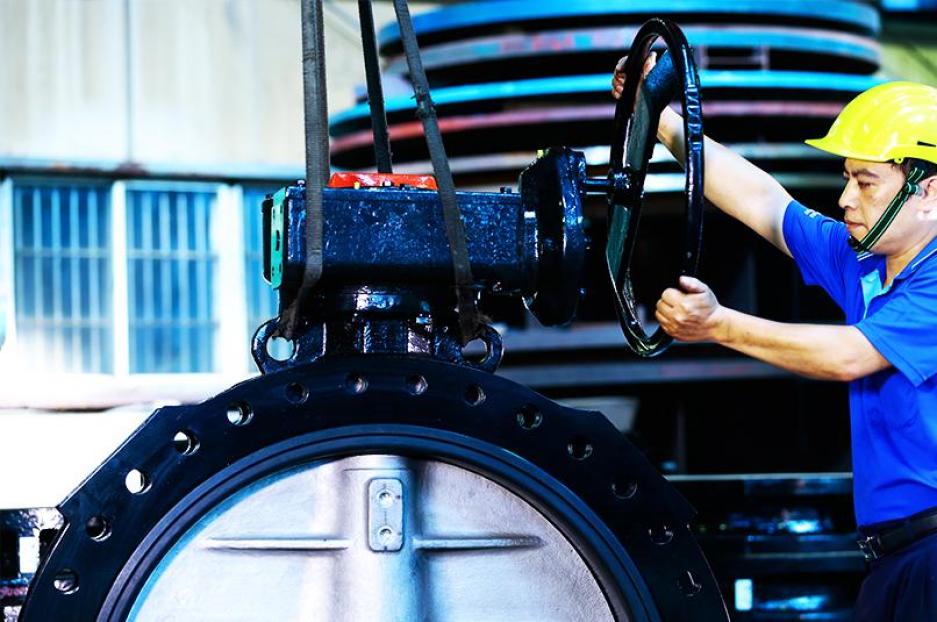

Cycle Life Testing
Verifies long-term durability through repeated opening/closing cycles under simulated service conditions. -

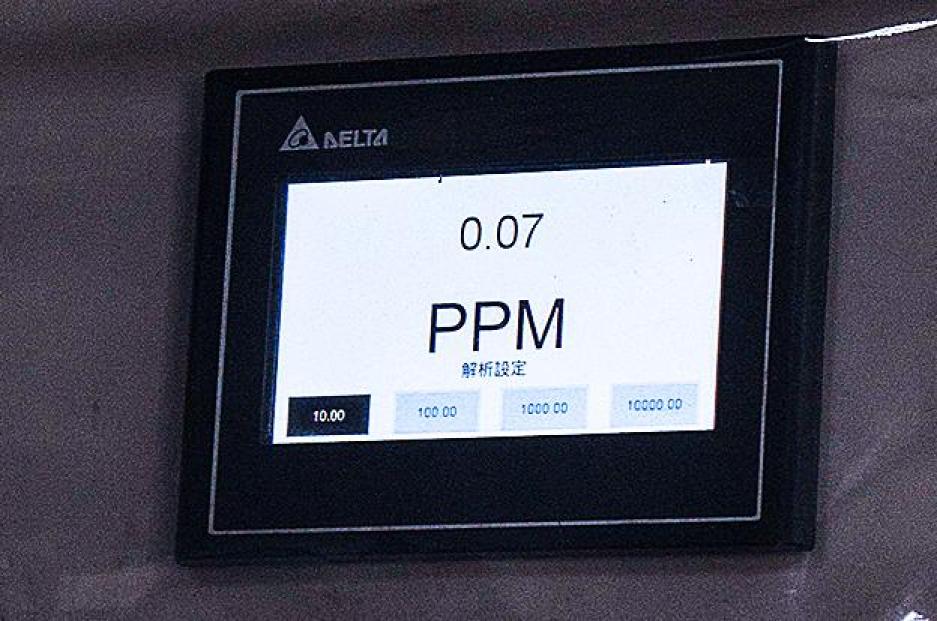

Emissions Testing
Assesses fugitive emissions in control valves under volatile or hazardous fluid environments. -

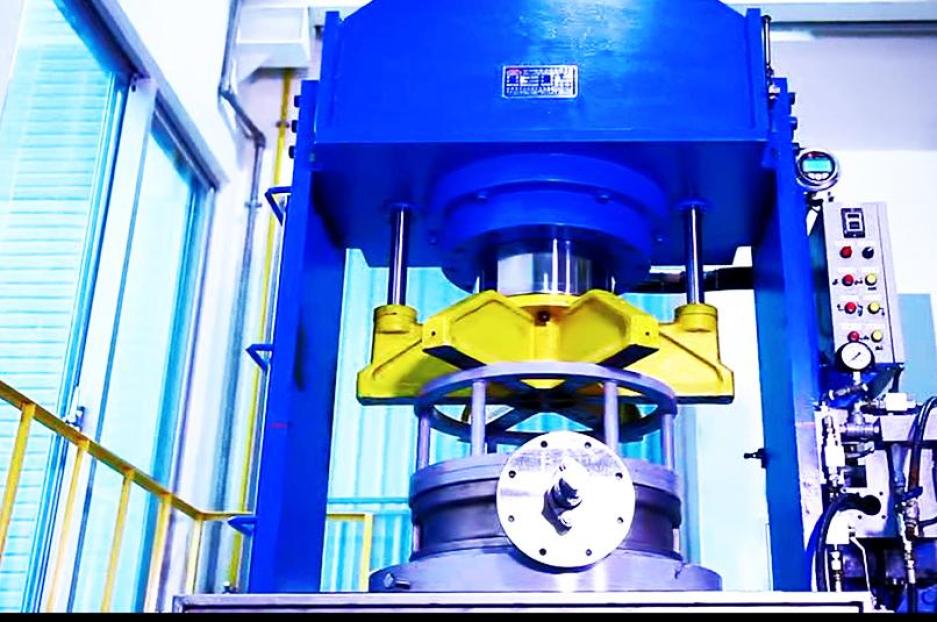

Pressure Testing
All valves undergo full hydrostatic testing to meet both international standards & customer specifications.
