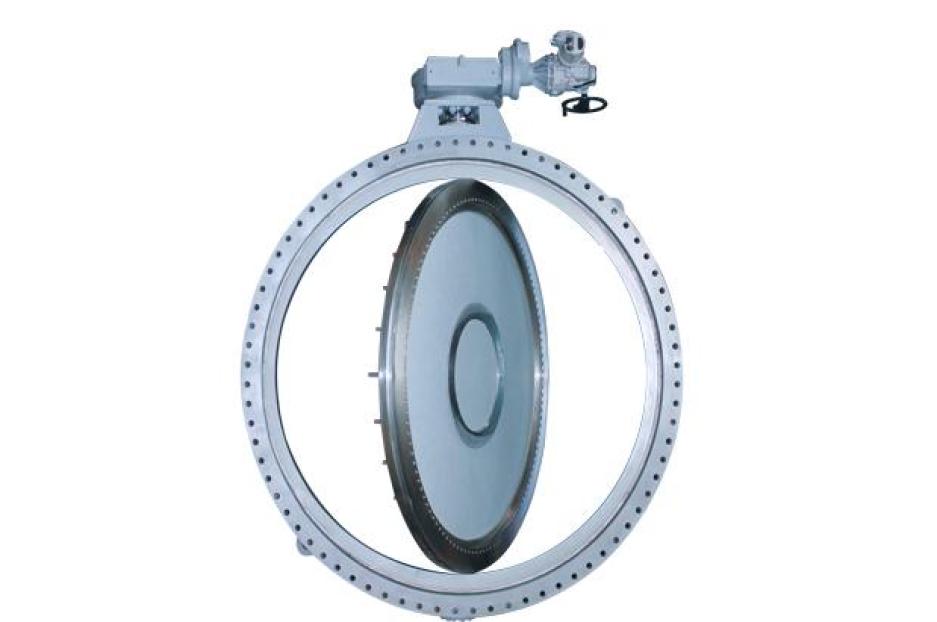

PFA/PTFE Lined Butterfly Valve
A PTFE-lined butterfly valve engineered for superior corrosion resistance and extended operational life.
Petrochemical
Power
Pulp & Paper
Nuclear
Chemical

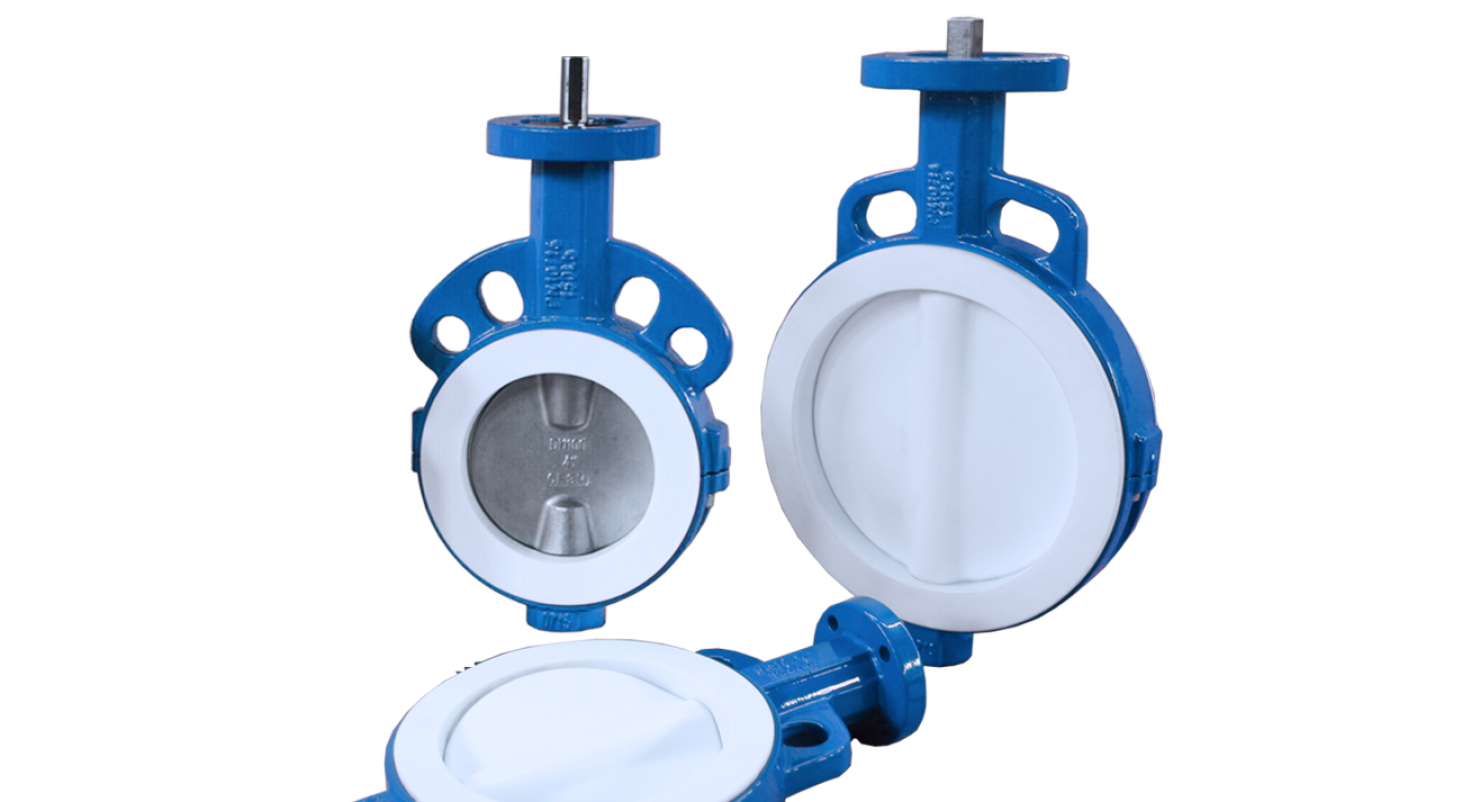

PFA/PTFE Lined Butterfly Valve
The two pieces of body wafer type butterfly valve and a concentric disc and seat configuration to with whole package PTFE sealed structure, takes whole package PTFE painting skills for the body. The painting thickness can reach up to 3~4mm , which effectively avoids the direct interaction between the body and the medium and the medium’s corrosion for the body. Different painting skills and materials of valve’s disc are taken according to the customer’s need, such as PTFE and nylon painting, stainless steel and bronze material for the body, etc.
Features & Benefits

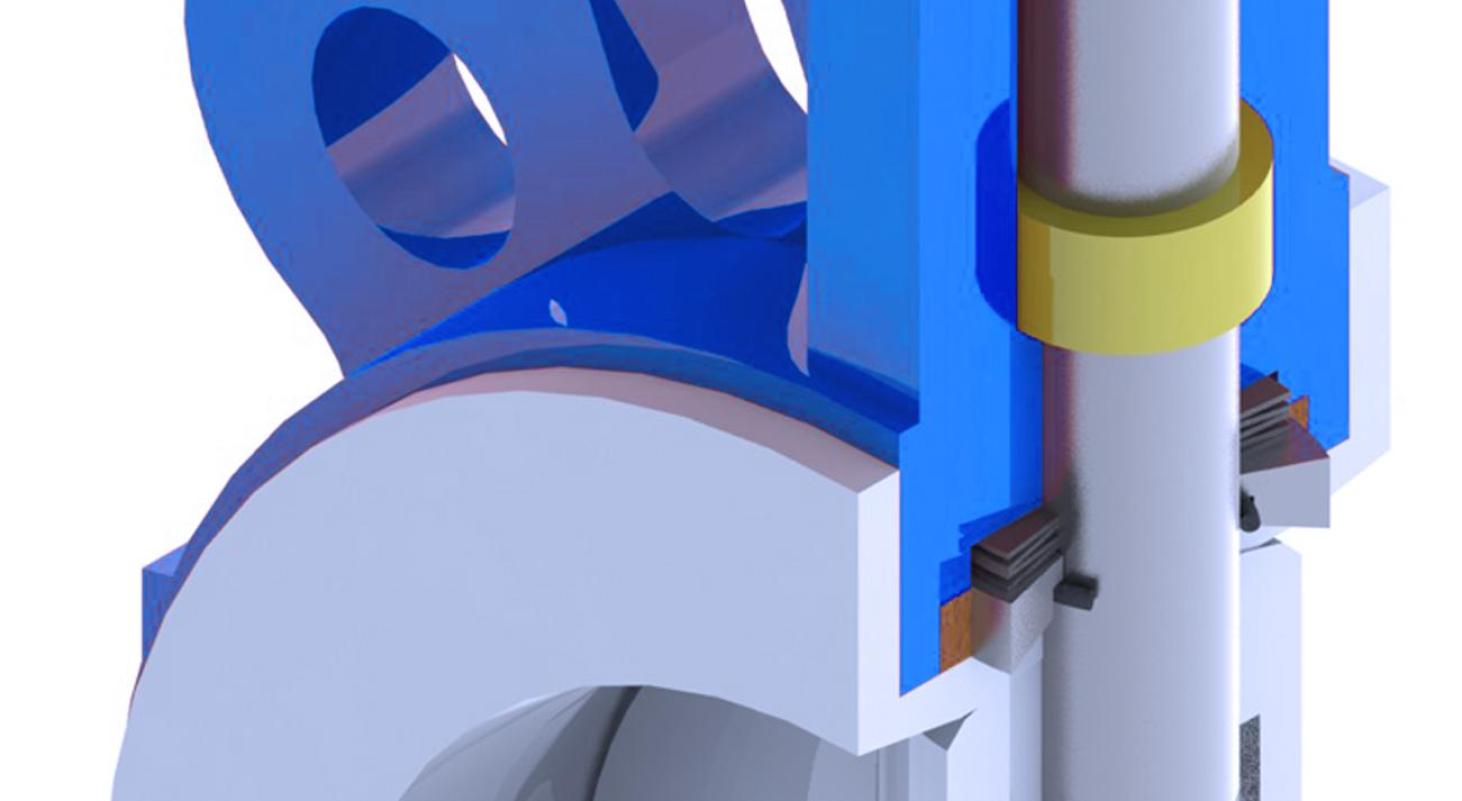

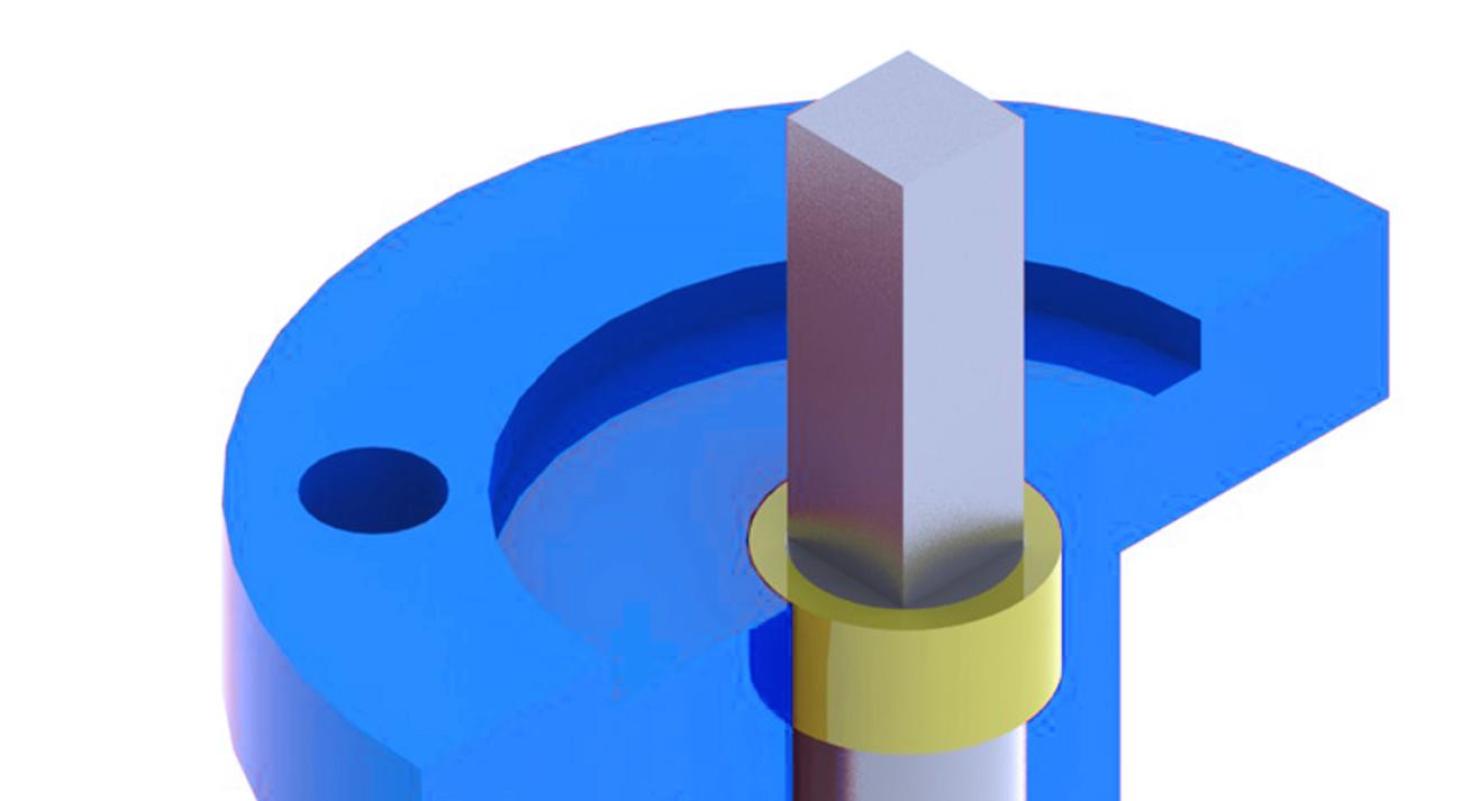

TOP STEM BUSHING
Disc spring

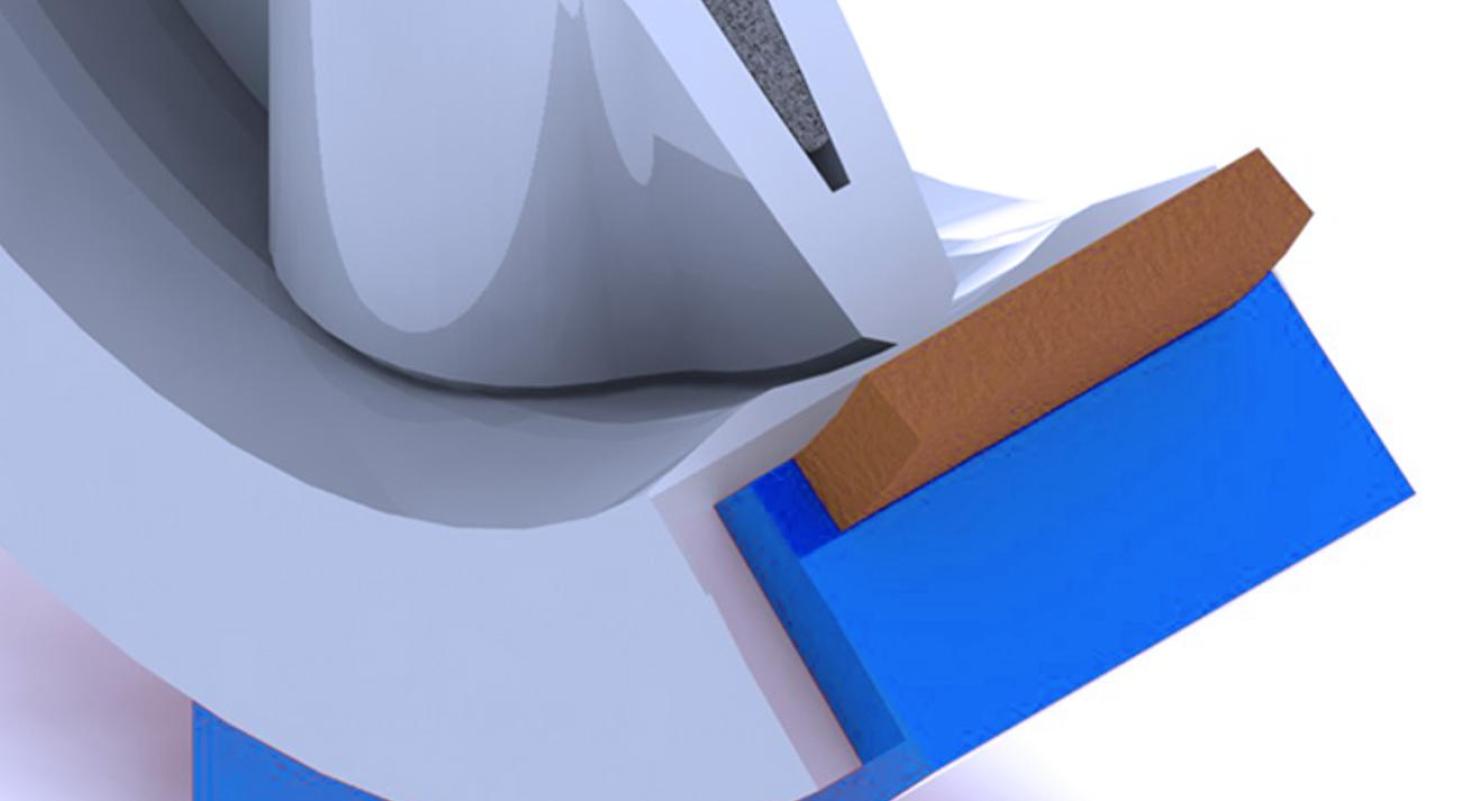

SEAT DESIGN
Specifications
| Size Range 1.5”-24”(40mm~600mm) |
Pressure Ratings -20 °C~200 °C(-4 °F~392 °F) |
| Temp. Range -20 °C~200 °C(-4 °F~392 °F) |
Pressure Ratings 10 bar | 6 bar | Vacuum -- 0,1 bar |
| Seat Type All-Metal Seat / Laminated Seat |

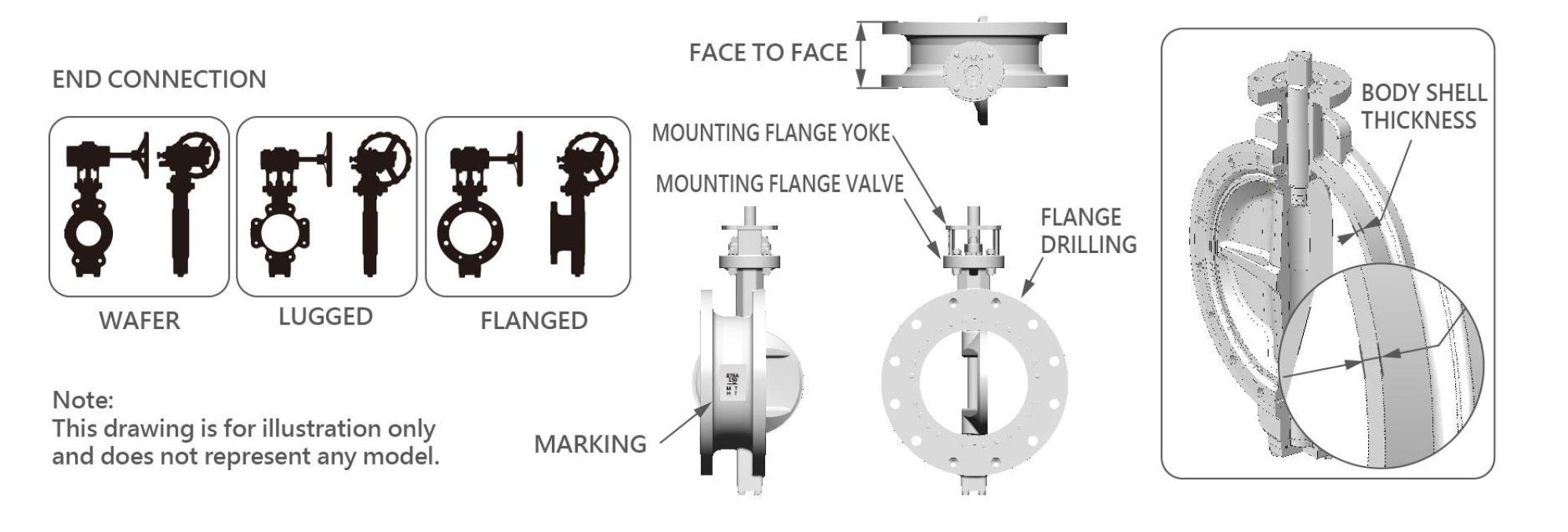

Body Styles Wafer | Lug | Flanged |
Customization Options
-
Size & Materials
Special sizes and alloys available upon request to meet specific temperature and fluid requirements. -
Jacketed Design
Maintain fluid temperature to prevent solidification or viscosity changes in pipelines. -

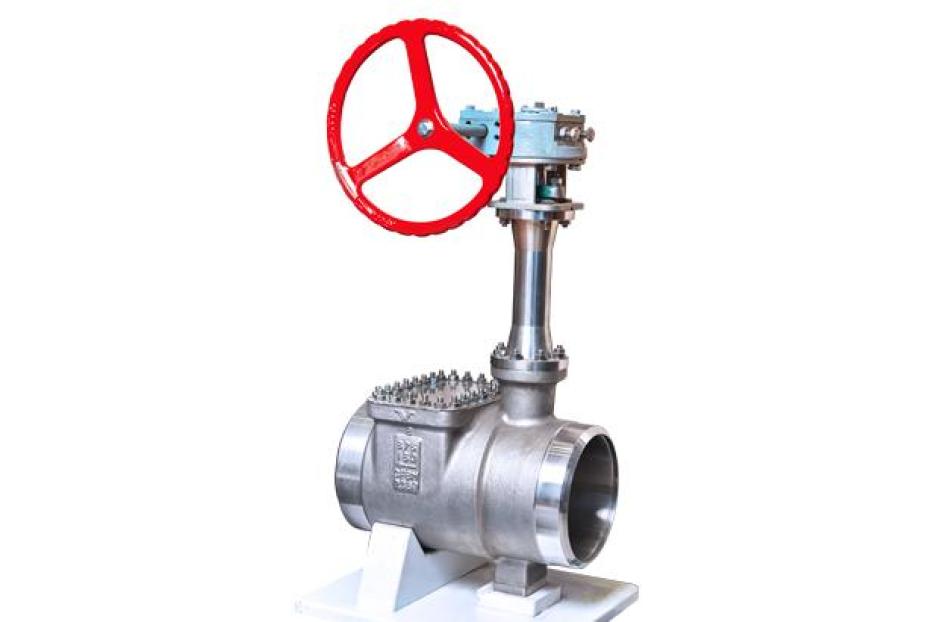

Extended Stem Design
Ideal for high/low-temperature environments—reduces thermal conduction for operator safety.
Performance & Testing Facilities
-

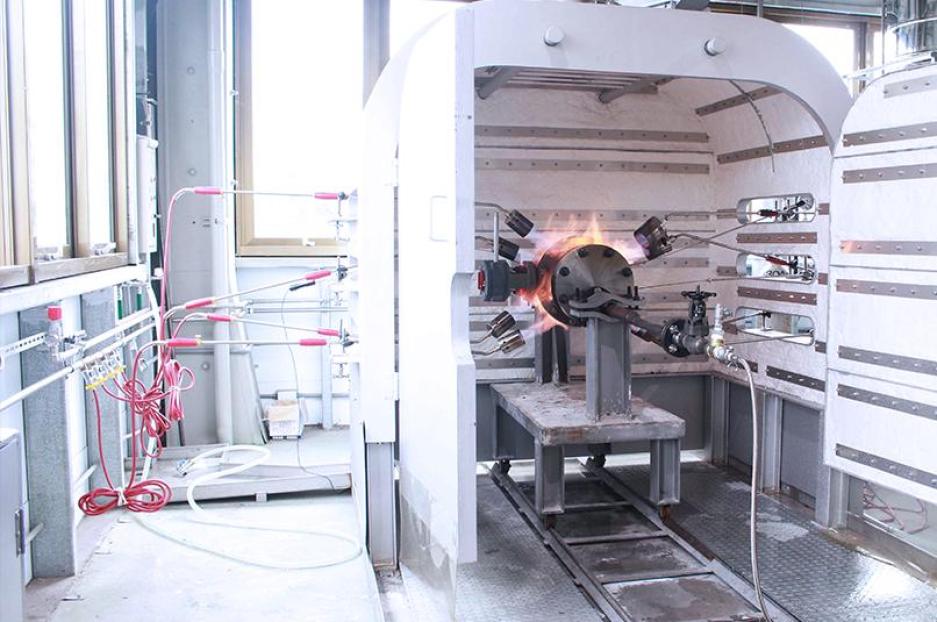

Fire Testing Laboratory
Simulates real fire scenarios to evaluate pressure resistance and fire-safe integrity.
-

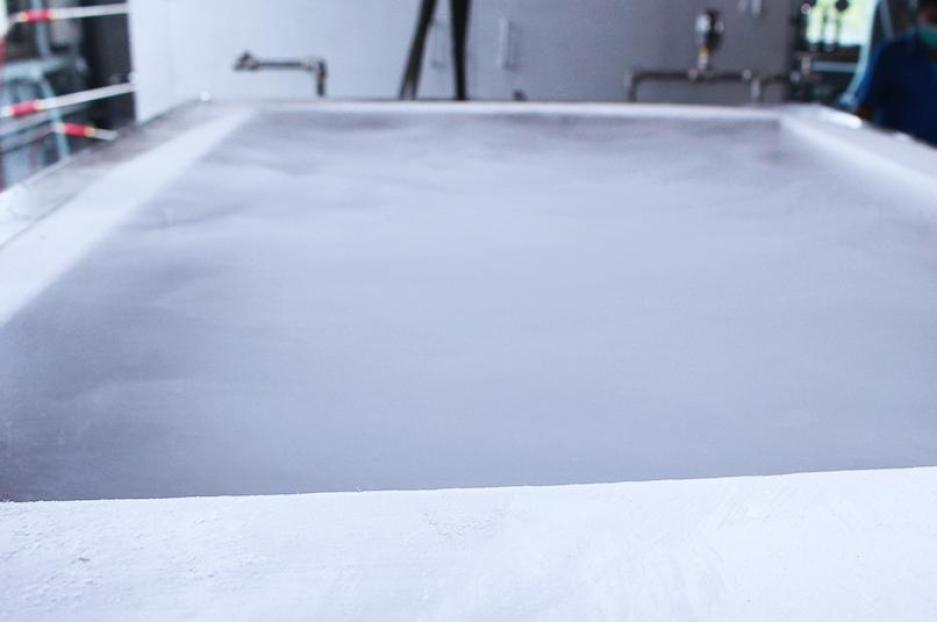

Cryogenic Testing
Performs valve functionality tests at cryogenic temperatures down to -196°C, ensuring product reliability.
-
ISO-Class Clean Room
Supports oil-free cleaning and polishing for internal surfaces, meeting clean-service requirements.
-

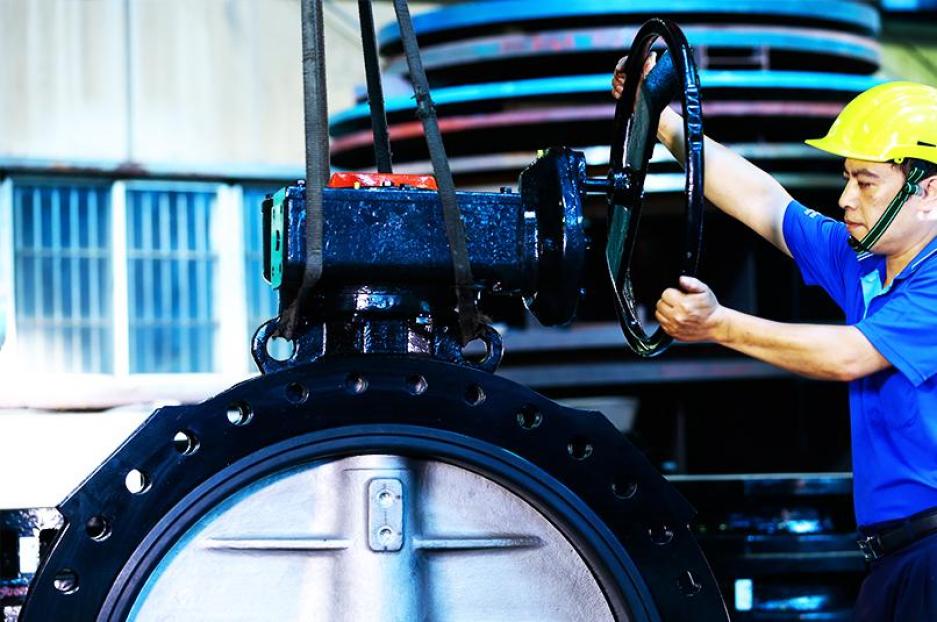

Cycle Life Testing
Verifies long-term durability through repeated opening/closing cycles under simulated service conditions. -

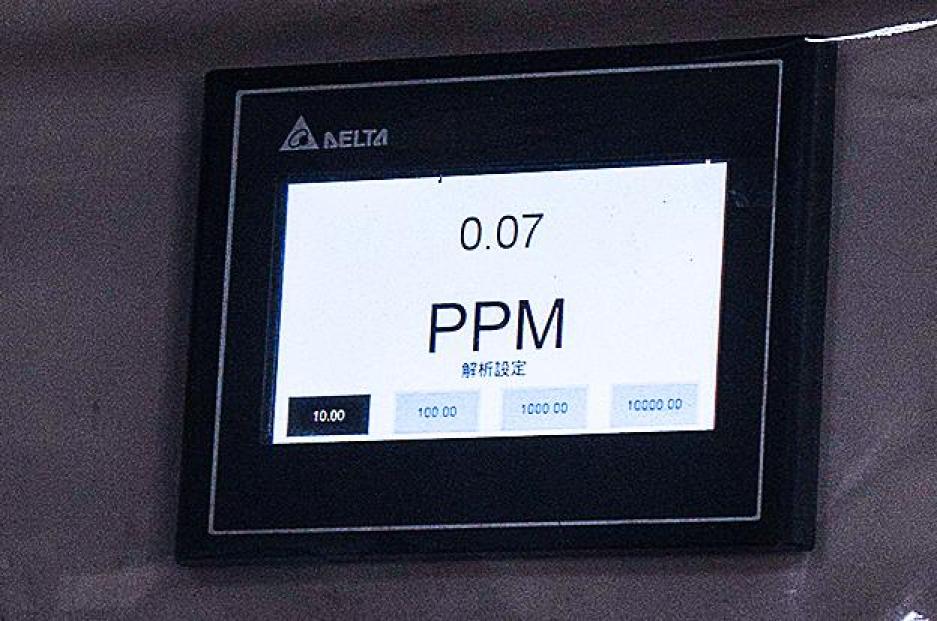

Emissions Testing
Assesses fugitive emissions in control valves under volatile or hazardous fluid environments. -

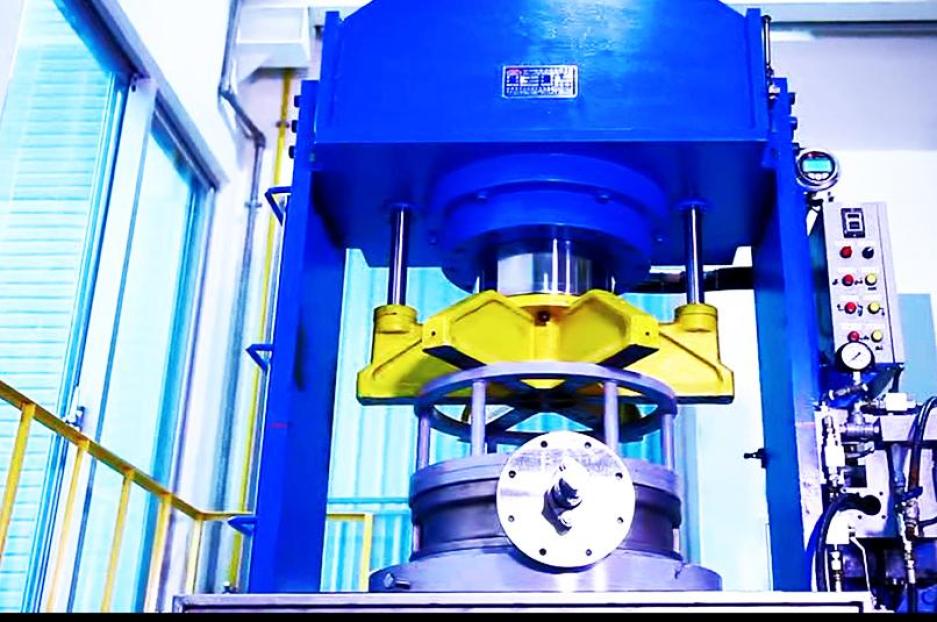

Pressure Testing
All valves undergo full hydrostatic testing to meet both international standards & customer specifications.
