Ship-Building| VF-265A
Zero Leakage | Corrosion Resistance
Exclusive Rubber Seat Technology | Marine Applications
Certified by: ABS | LR | CR | BV | DNV | CCS
Exclusive Rubber Seat Technology | Marine Applications
Certified by: ABS | LR | CR | BV | DNV | CCS
Marine
Water & Water Treatment
Seawater Cooling
Exhaust Systems
Condenser Cooling
VF-265A Series | Marine Butterfly Valves
Low Torque – Industry Leading Performance
- VF-265A Series features a low-torque design for easy operation and industry-leading performance.
Zero Leakage
- Engineered to achieve zero leakage for long-term reliable service.
Superior Corrosion Resistance
- Provides exceptional resistance to corrosion, suitable for seawater and harsh environments.
Optimal Performance in Key Applications
- Designed for water treatment, seawater systems, and ballast water systems.
Double-Offset Design with Resilient Rubber Seat
- Utilizes a double-offset geometry with a resilient rubber seat to minimize friction and extend sealing life.
Reduced Operating Torque
- Optimized design reduces required operating torque, enhancing efficiency and service life.
Certifications
- Over 10 international quality accreditations
- 140 product type certifications
- Maximum manufacturing capability: DN 3600 (144")
- 45+ years of valve engineering and manufacturing experience
- Global supply to over 45 countries
|
TÜV Rheinland |
PED(H) 97/23/EC Pressure Equipment Directive |
|
ABS |
American Bureau of Shipping |
|
LR |
Lloyd’s Register
|
|
CR |
China Corporation Register of Shipping |
|
BV |
Bureau Veritas
|
|
DNV |
Det Norske Veritas |
|
CCS |
China Classification Society
|
|
CRN |
Canadian Registration Number |
Features & Benefits
More then 5,000 ships
VALUE’s Ship-Building valve is designed to suit updated demandof shipbuilding. As its high performance and long service life,the ship-side valve has already been using for more then 5,000 ships around the world since 1980.

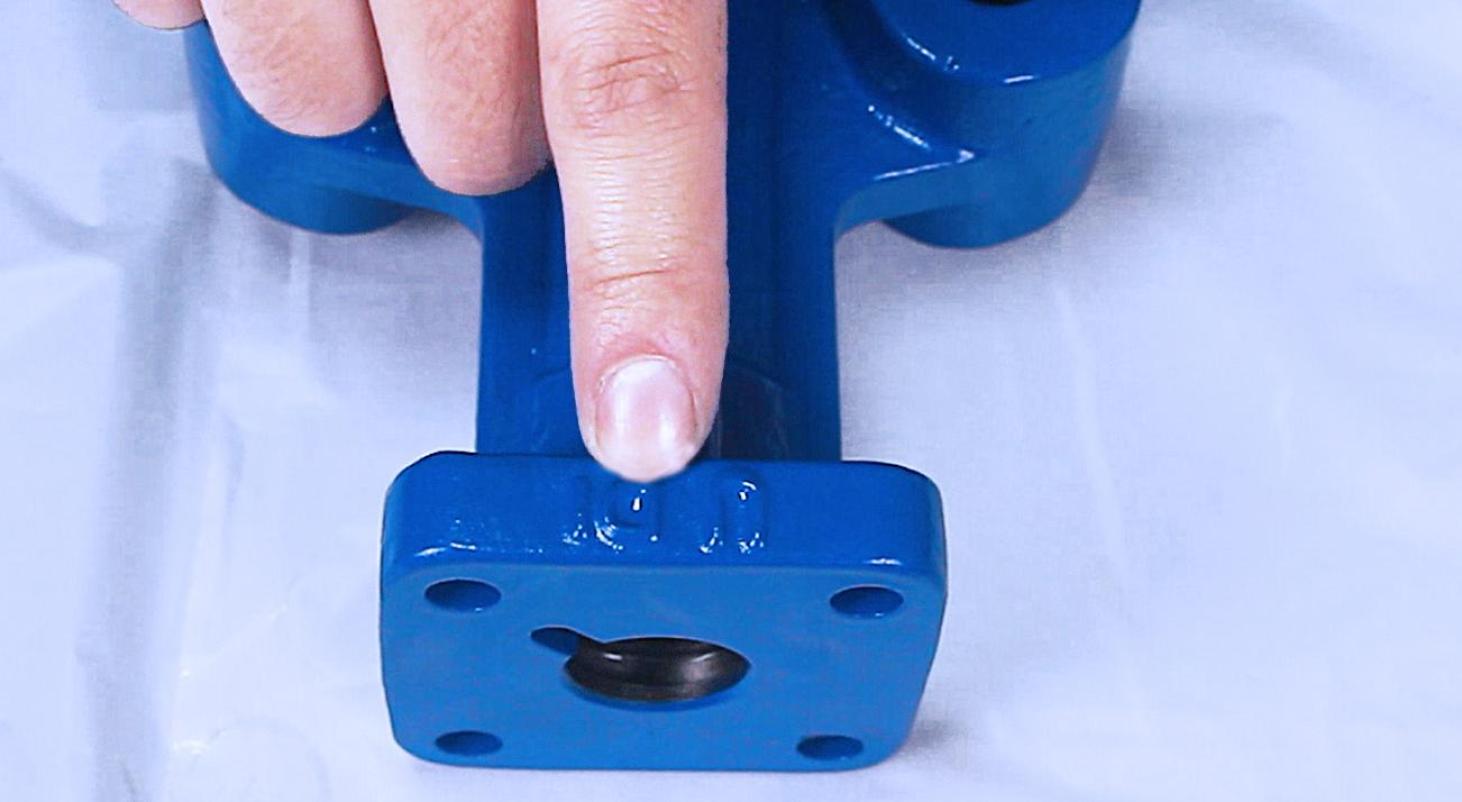

Shaft
Pin-free design (below 24”) for the connection between disc
and shaft can decrease the probability of leakage by the
corrosion of sea water and quickly maintain without special
tools.
Rubber Seat
In order to serve different requirements, severalkinds of rubber material are available on customers’ request.

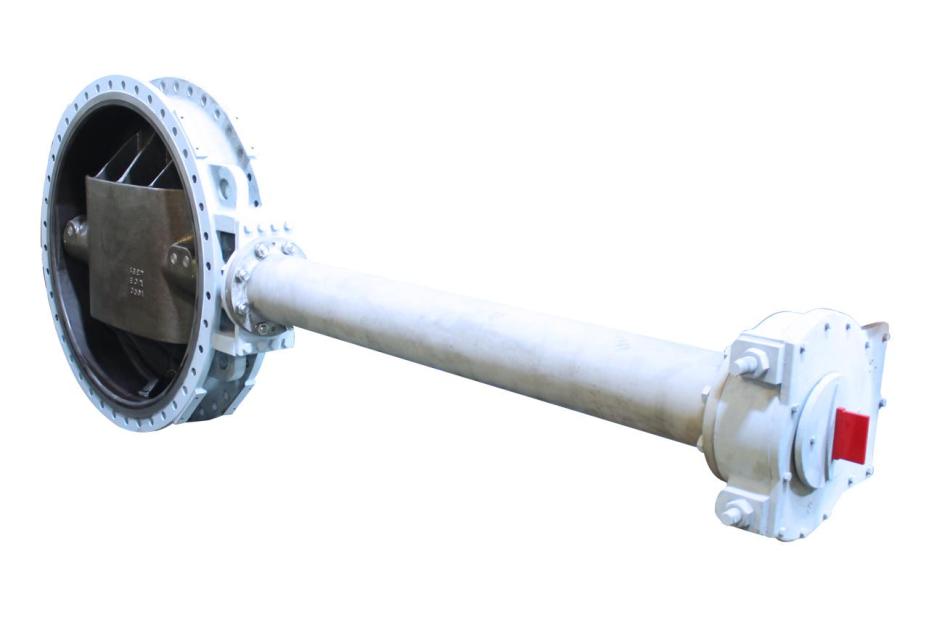

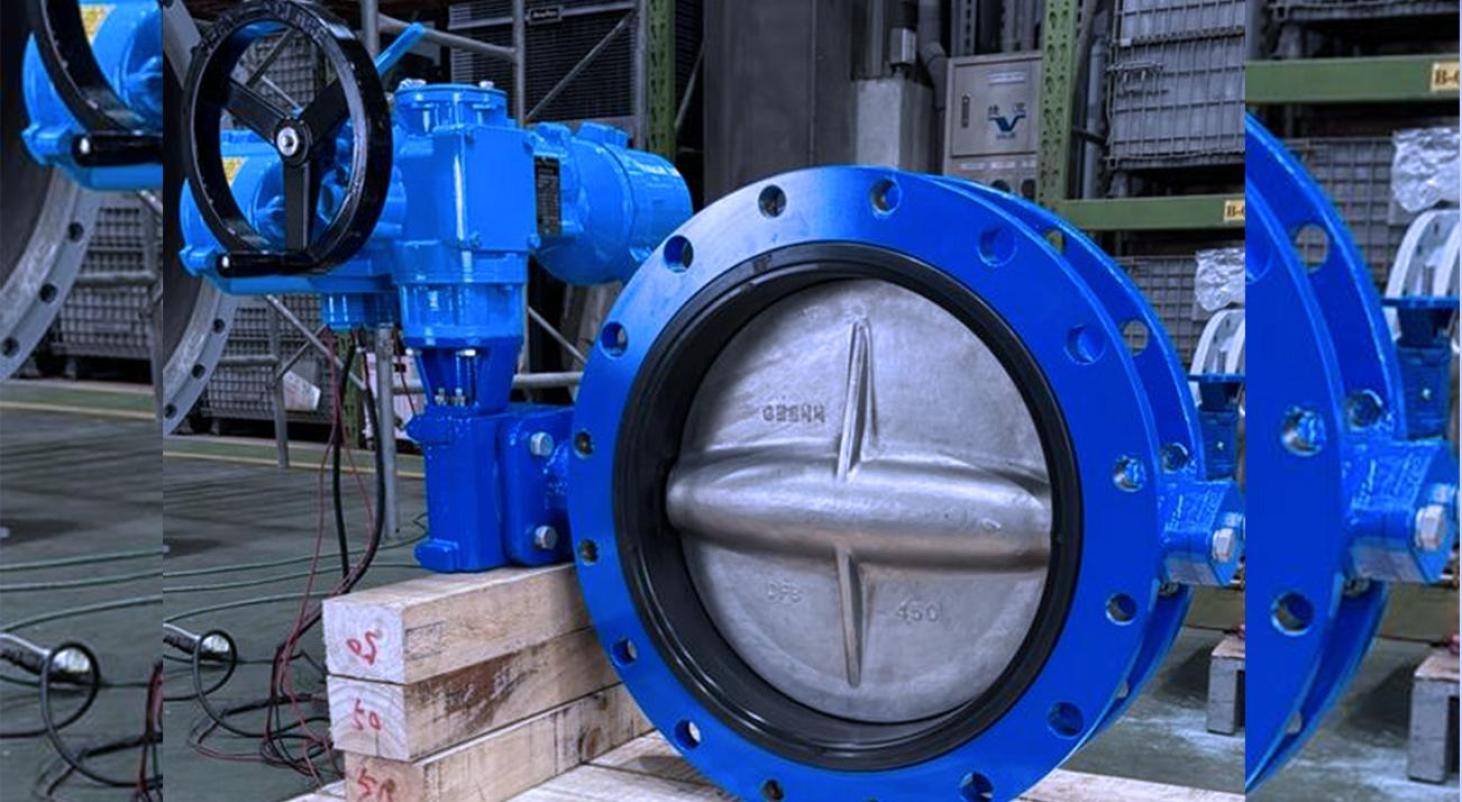

Various actuators
Various actuators such as hydraulic, pneumatic electric andmanual actuator are available on customer requirement.
Bi-Directional Sealing
All waterway design valves are capable of withstanding pressure in both flow directions.

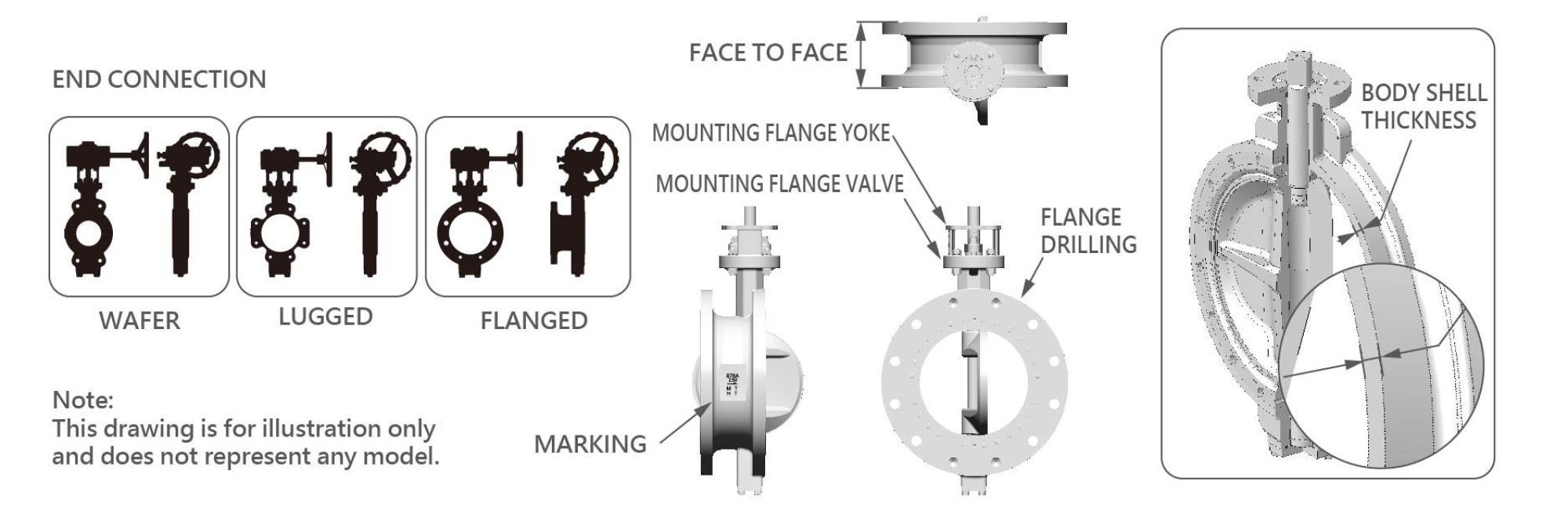

Specifications
Technical specifications are for reference only.Value Valves reserves the right to modify product design without prior notice.
| Size Range 2"- 24" | DN 50 - DN 600 |
Face-to-Face ISO 5752 | JIS F 7480 |
| Tempture Range -20°C - 120 °C | -4°F - 248°F |
Marking Standard MSS-SP-25 |
| Pressure Ratings 10bar | 16bar |
Design Flange |
| Body Styles Double Flanged |
Testing Standard ISO 5208 |
| Seat Type Soft Seat |
|
| Body Wall Thickness ASME B 16.34 | API 594 |
|
| Operator Mounting Flange ISO 5211 |
|
| Design Flange ISO 5208 | ASME B16.34 |
Customization Options
Application
Customization Options
-

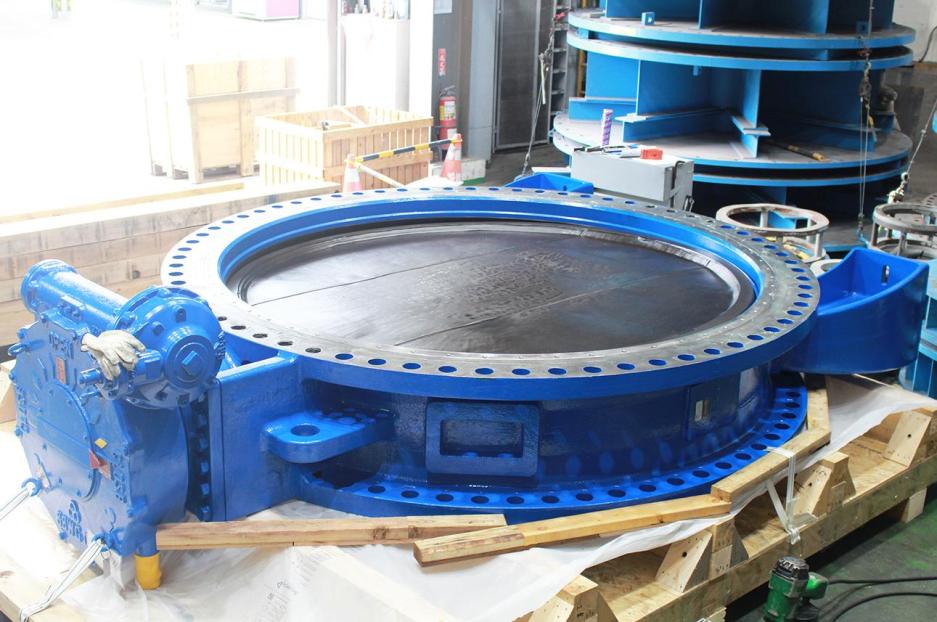

Size & Materials
Special sizes and alloys available upon request to meet specific temperature and fluid requirements. -
-

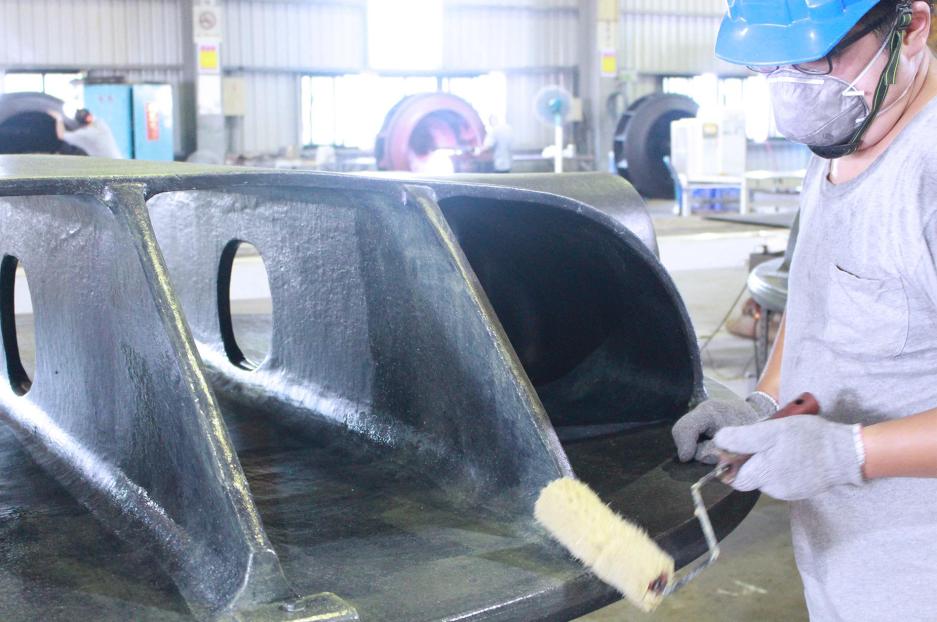

Full-Lined Rubber Disc
Disc fully covered with rubber for maximum corrosion resistance in highly aggressive fluids.
Performance & Testing Facilities
-

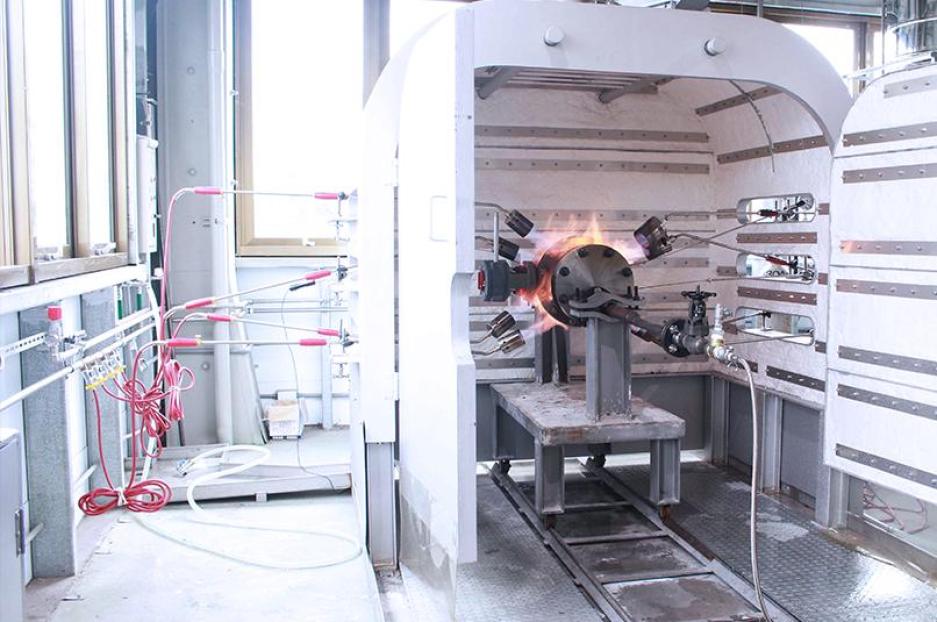

Fire Testing
Simulates real fire scenarios to evaluate pressure resistance and fire-safe integrity. -

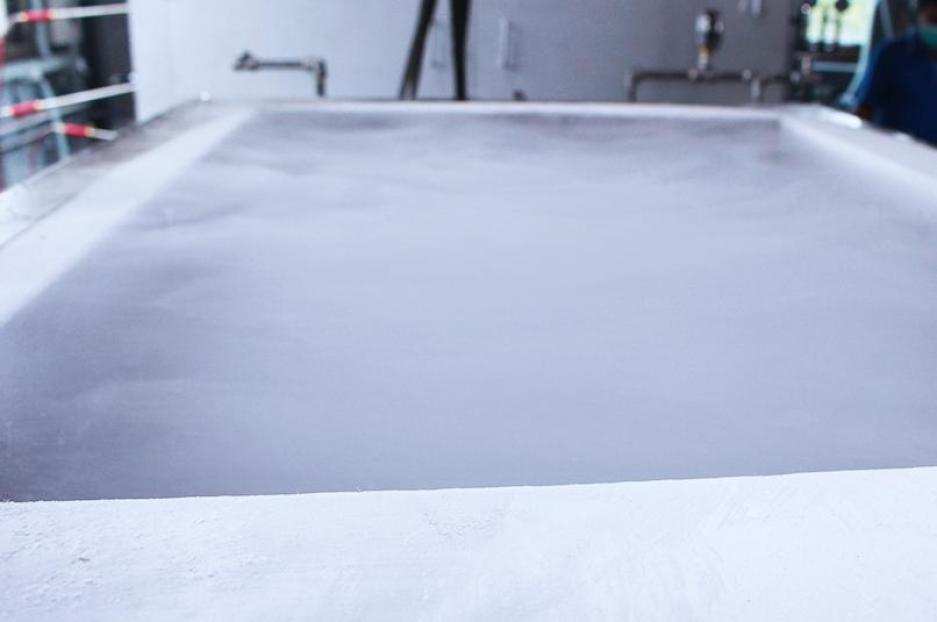

Cryogenic Testing
Performs valve functionality tests at cryogenic temperatures down to -196°C, ensuring product reliability.
-

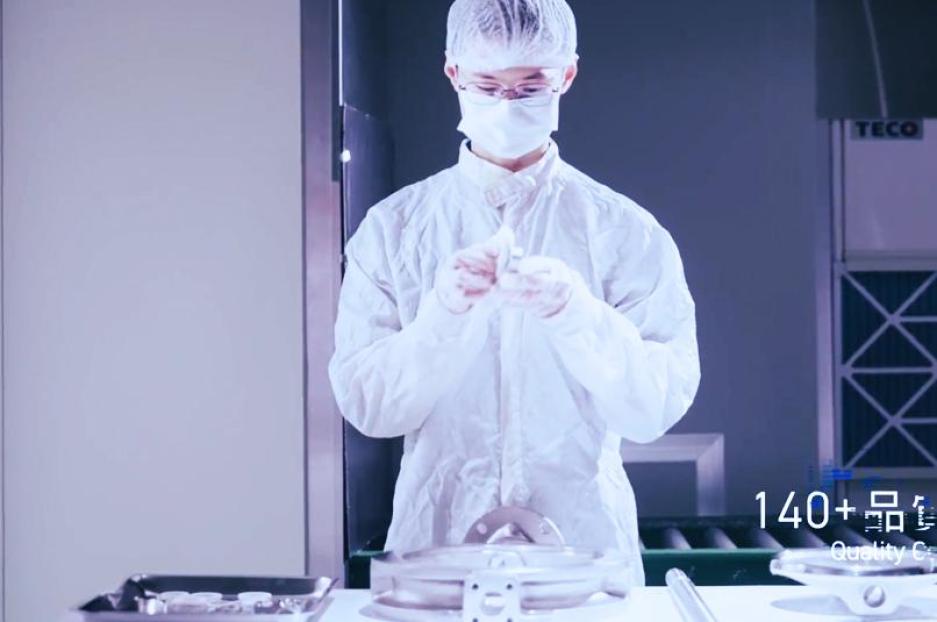

ISO-Class Clean Room
Supports oil-free cleaning and polishing for internal surfaces, meeting clean-service requirements.
-

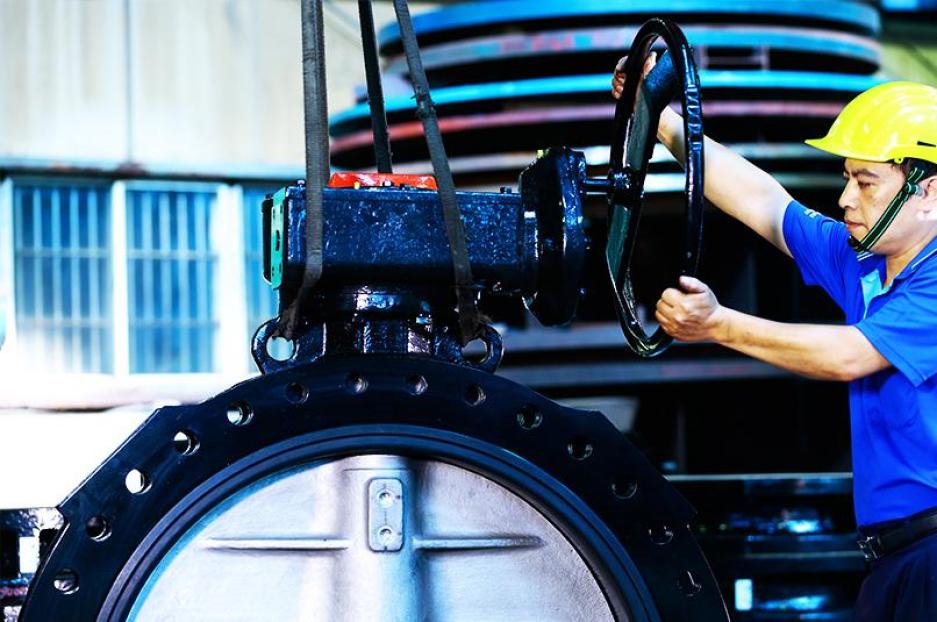

Cycle Life Testing
Verifies long-term durability through repeated opening/closing cycles under simulated service conditions. -

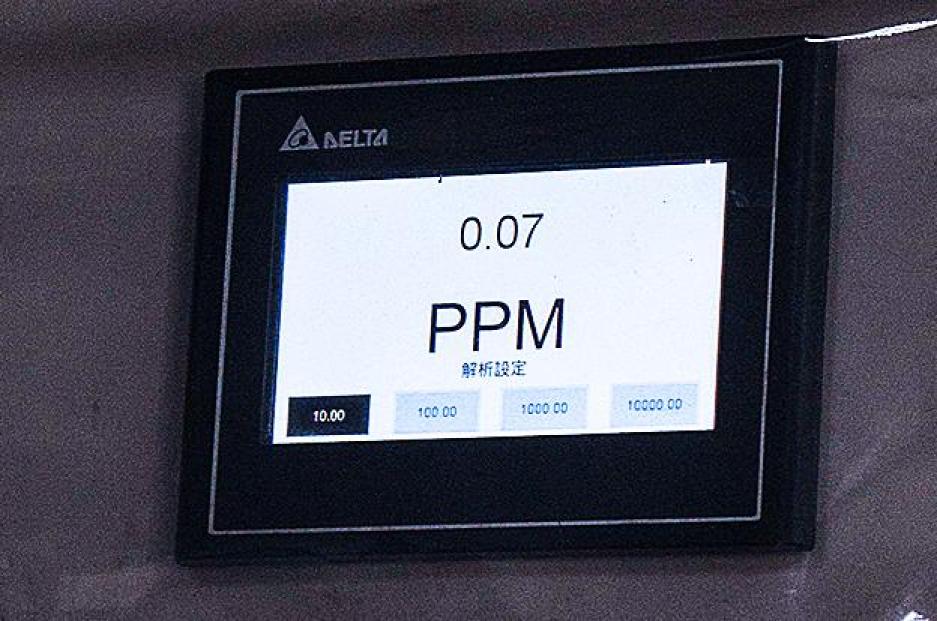

Emissions Testing
Assesses fugitive emissions in control valves under volatile or hazardous fluid environments. -

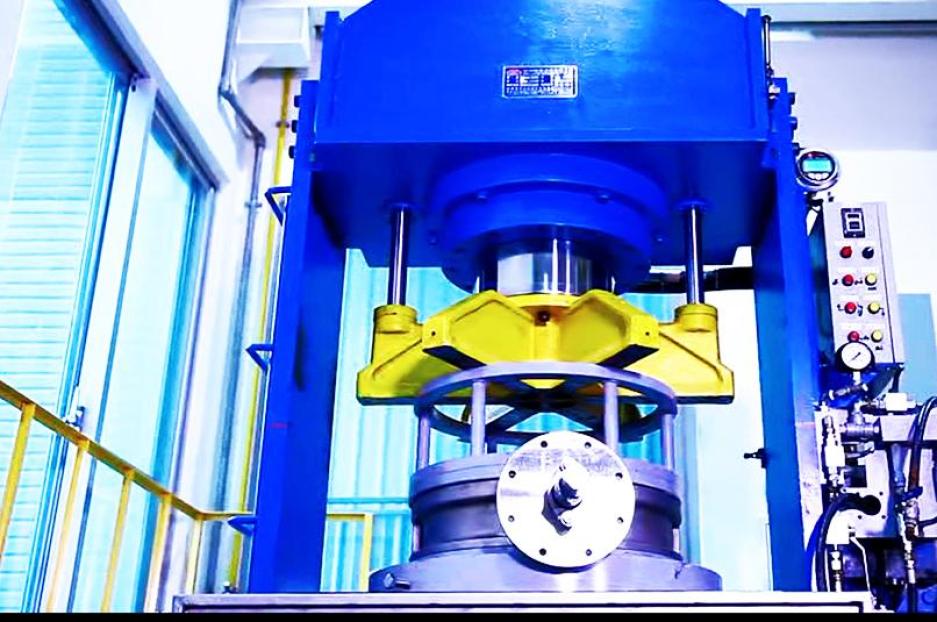

Pressure Testing
All valves undergo full hydrostatic testing to meet both international standards & customer specifications.
