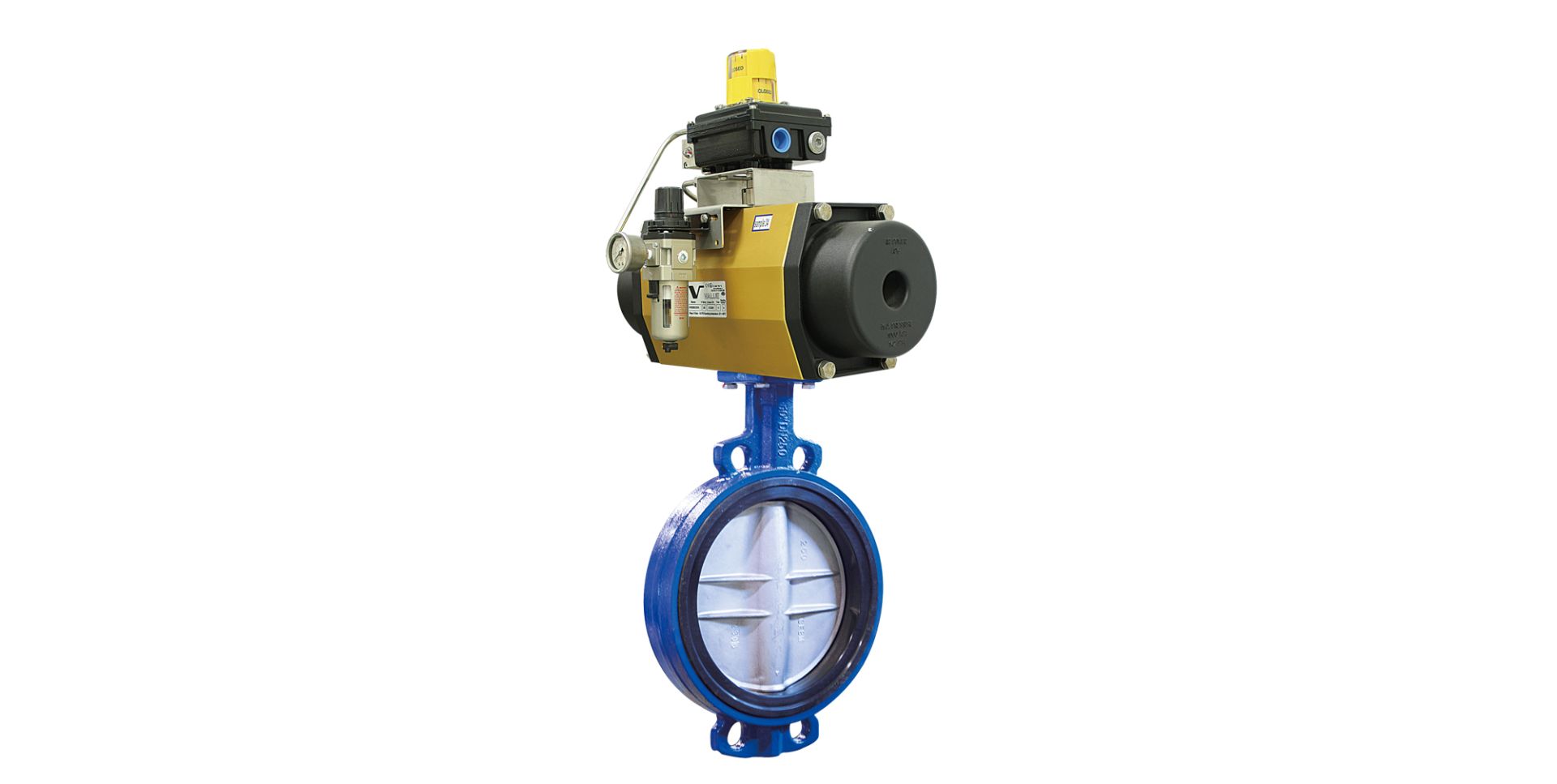

Centric Butterfly Valve | VF-7
Certified by ABS | CR
Compliant with ISO 14067 Carbon Footprint Standard
in accordance with international standards for zero-leakage shutoff,
high corrosion resistance, and extended service life in marine, water treatment, and industrial applications.
Certifications
|
TÜV Rheinland |
PED(H) 97/23/EC Pressure Equipment Directive ATEX 2014/34/EU Explosion Protection ISO 14067 Carbon Footprint Standard |
|
CR – China Classification Society |
Foundry Approval for Marine Casting |
|
ABS – American Bureau of Shipping |
Valve Type Design Approvals
|
Features & Benefits
SHEAT
"Q" TYPE DESIGN

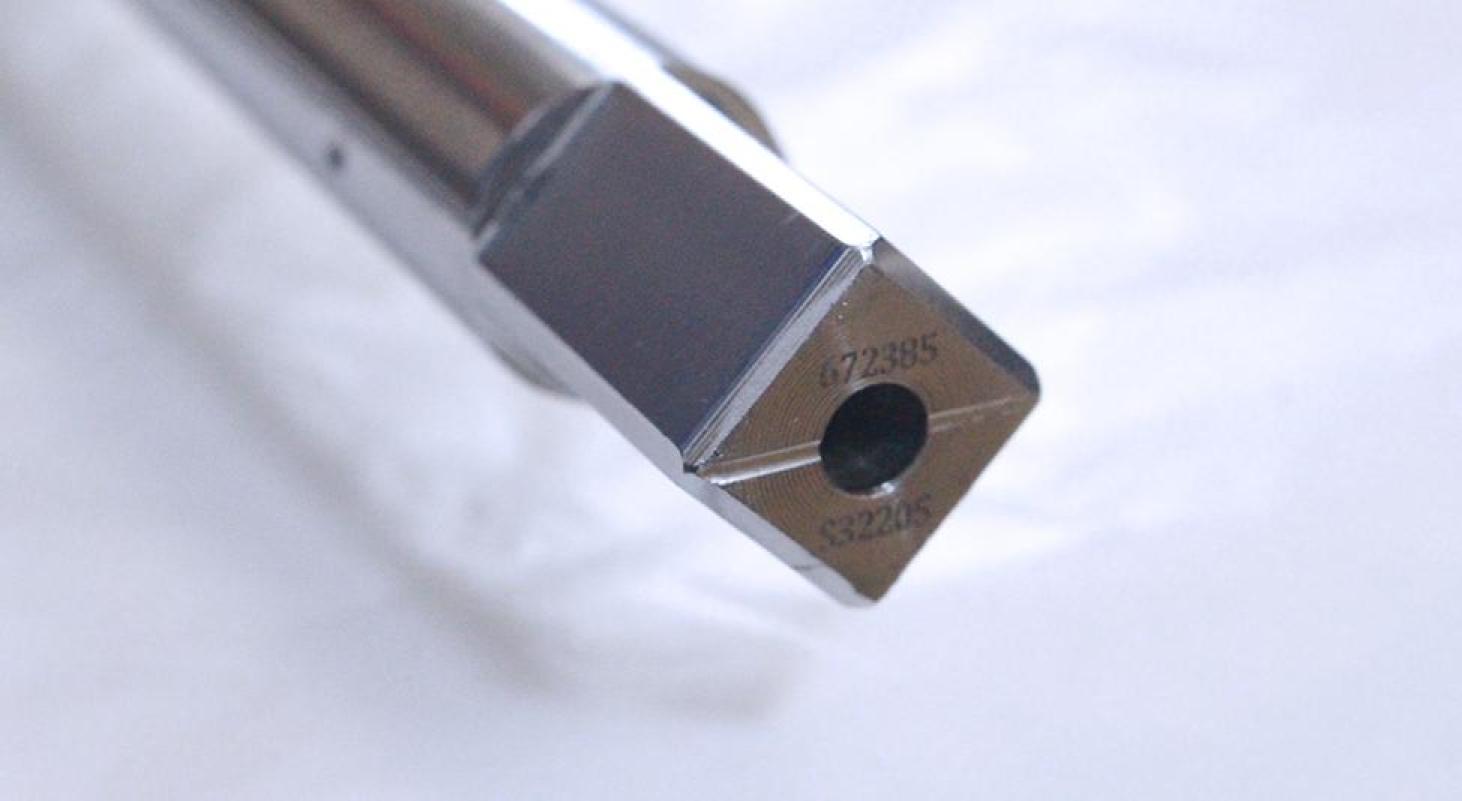

SHAFT STRENGTH UPGRADED

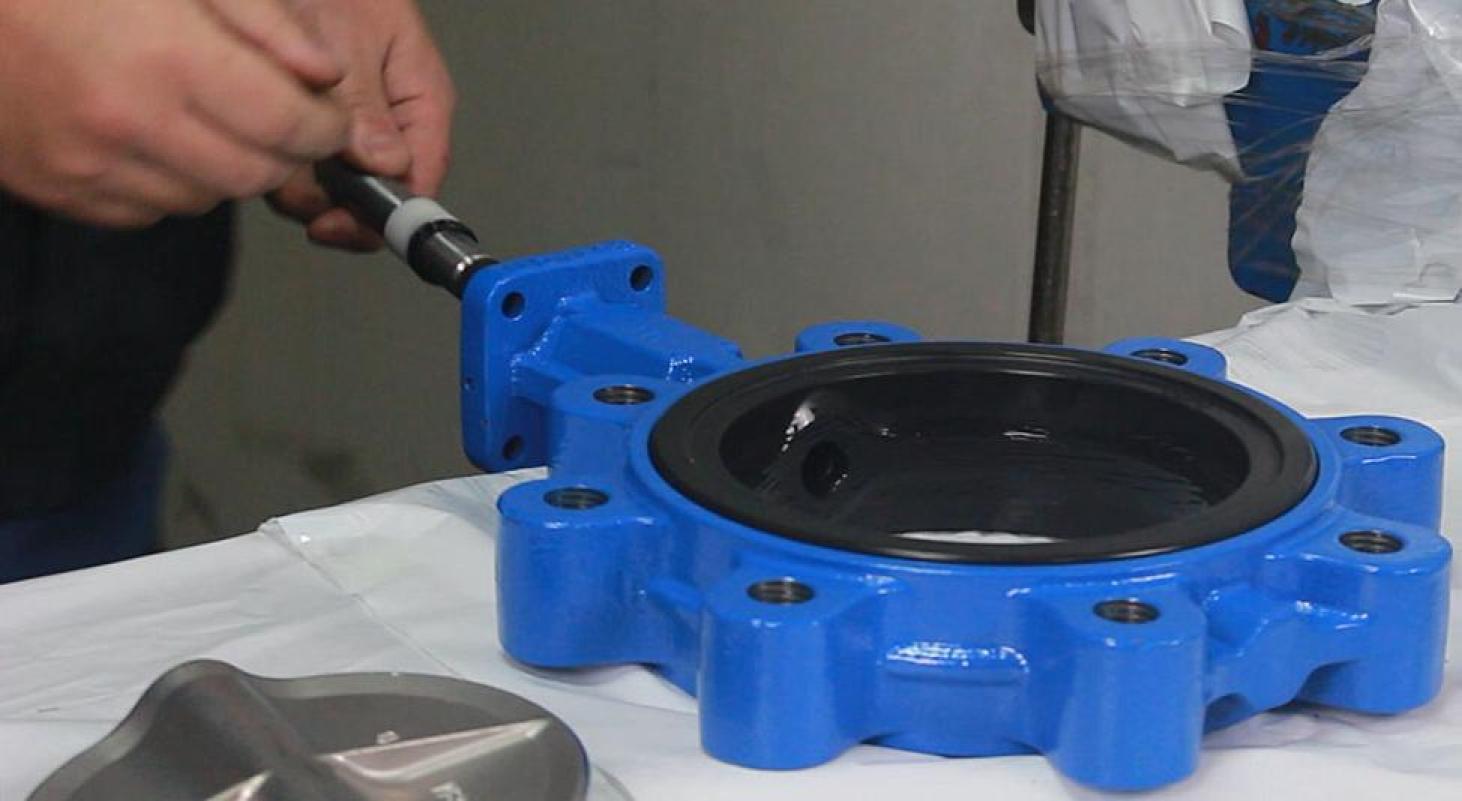

BUSHING | 50,000 cycles
SEAT
SEAT | Zero Leakage
VF-730 with rubber seatedcentric type butterfly valve design.

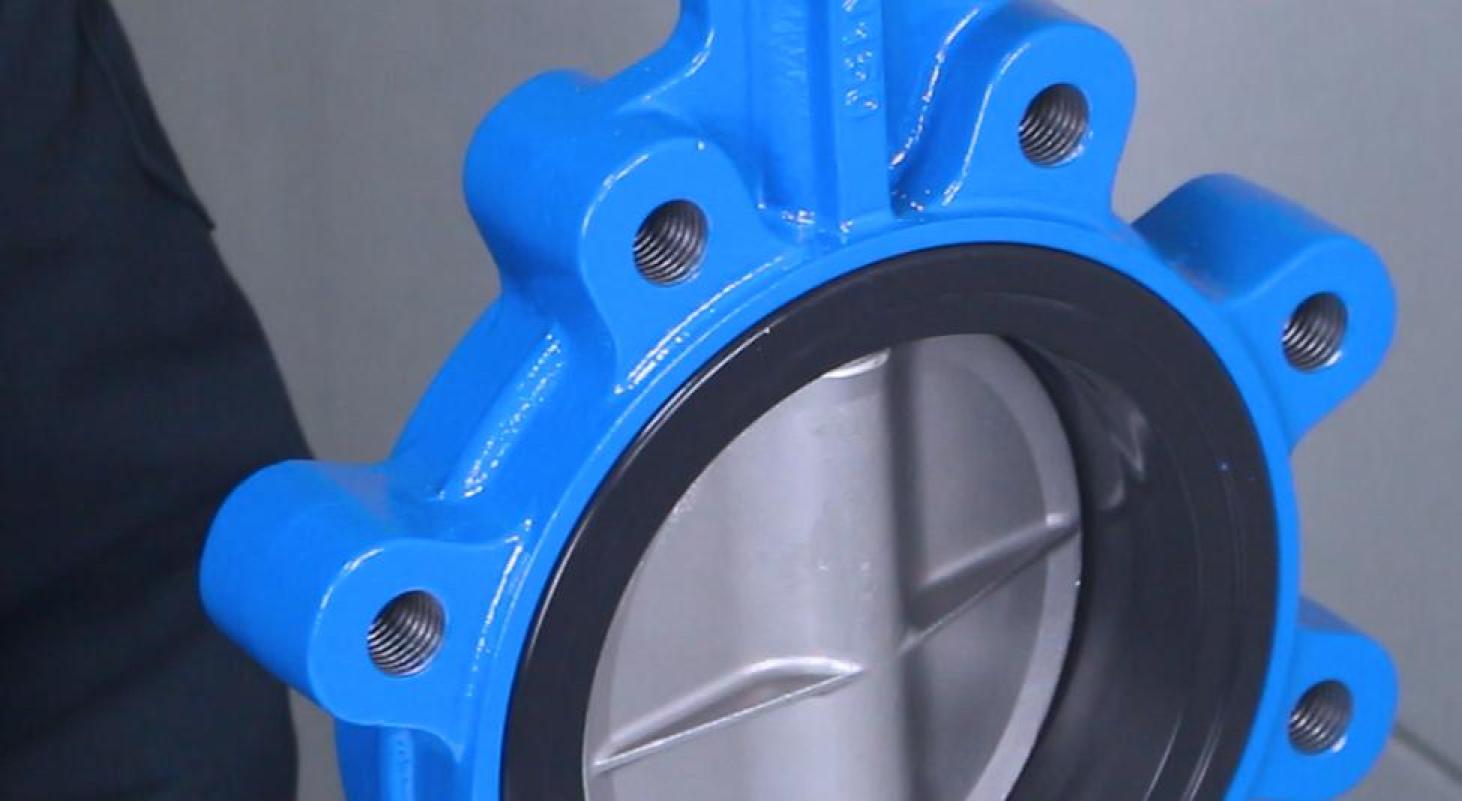

PIN-LESS
Pin-less design provideseasily maintenance work.

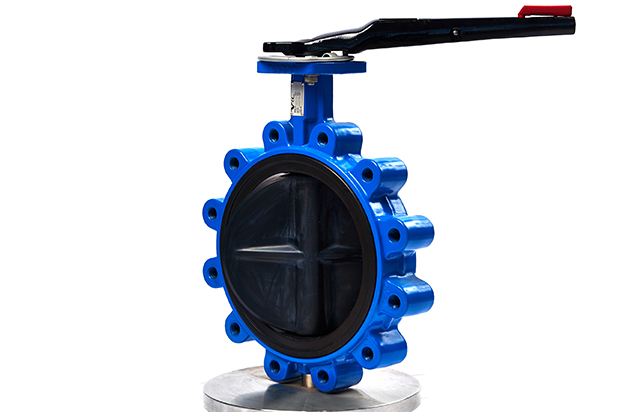

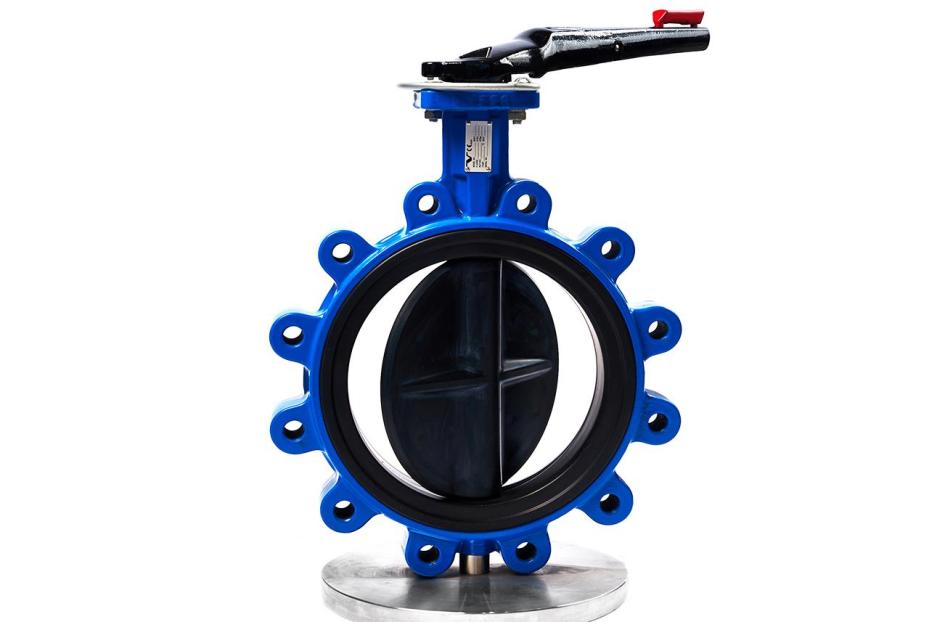

DISC INDICATION

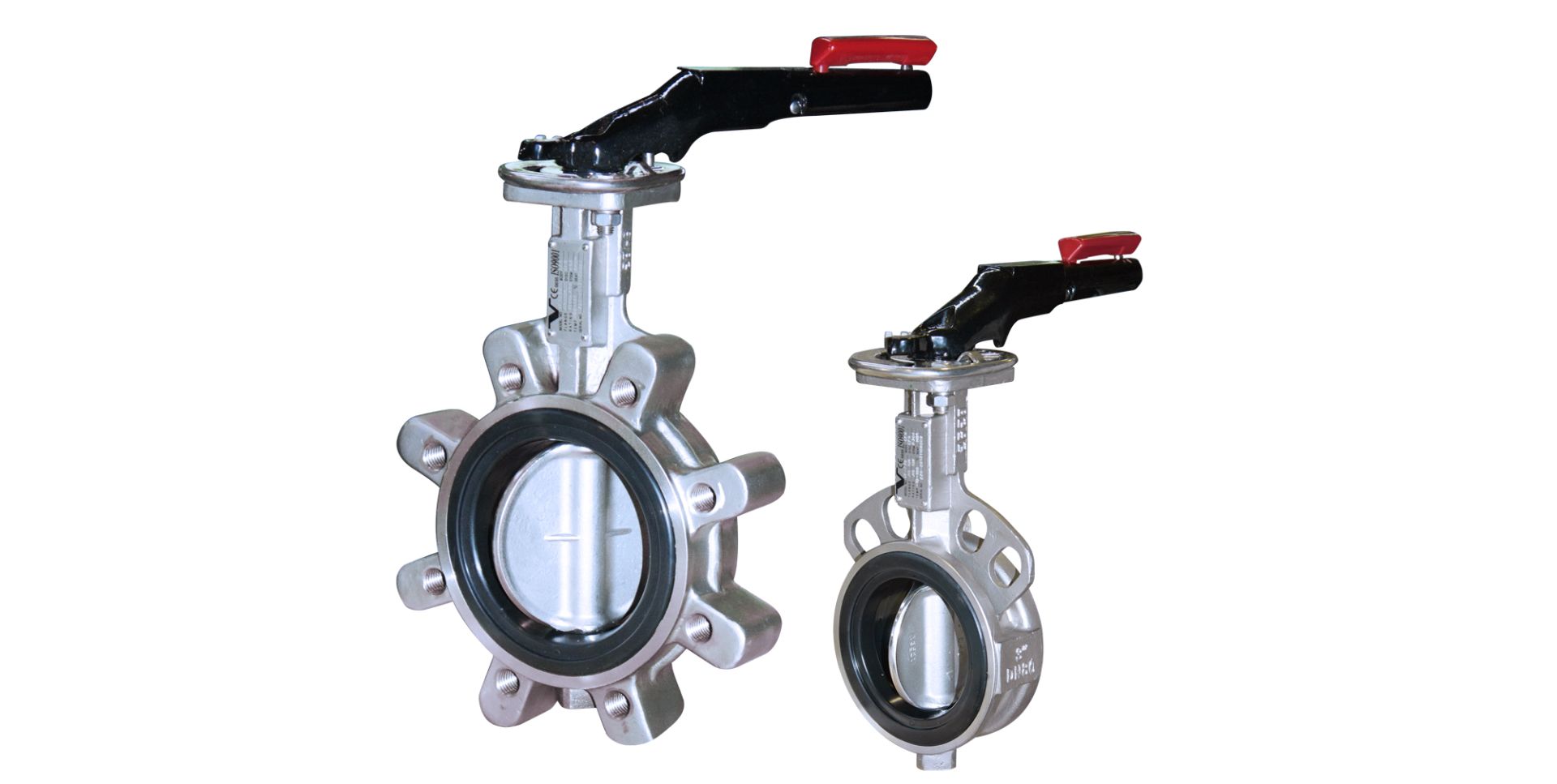

VF-7 Series – Centric Butterfly Valve SelectionGuide
If installed between flanges ® Select VF-730 (Wafer Type)
Step 2: Dead-End Requirement

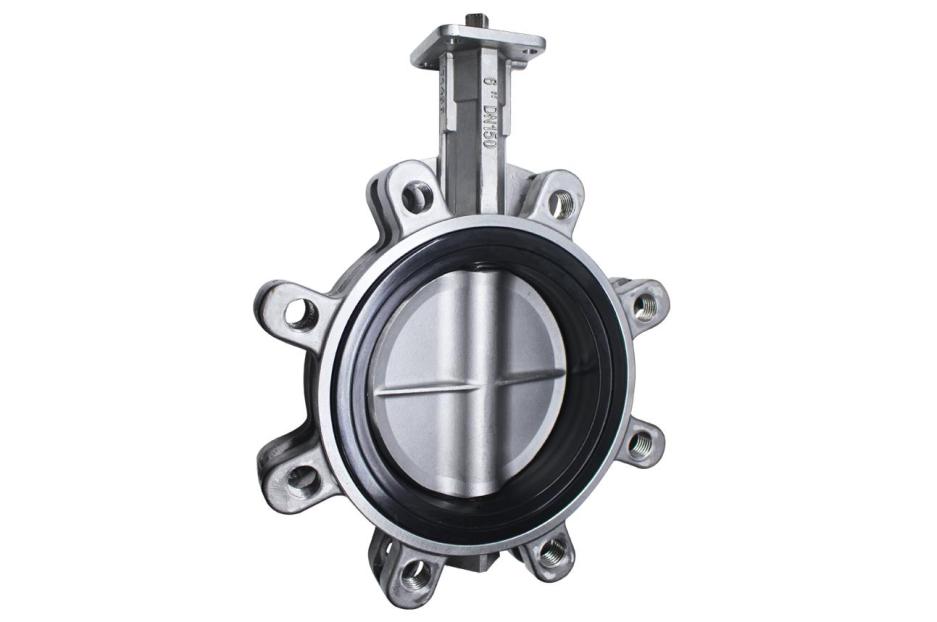

If single-side pipe removal is required ® Select VF-733 (Lug Type)
Step 3: Size and Application

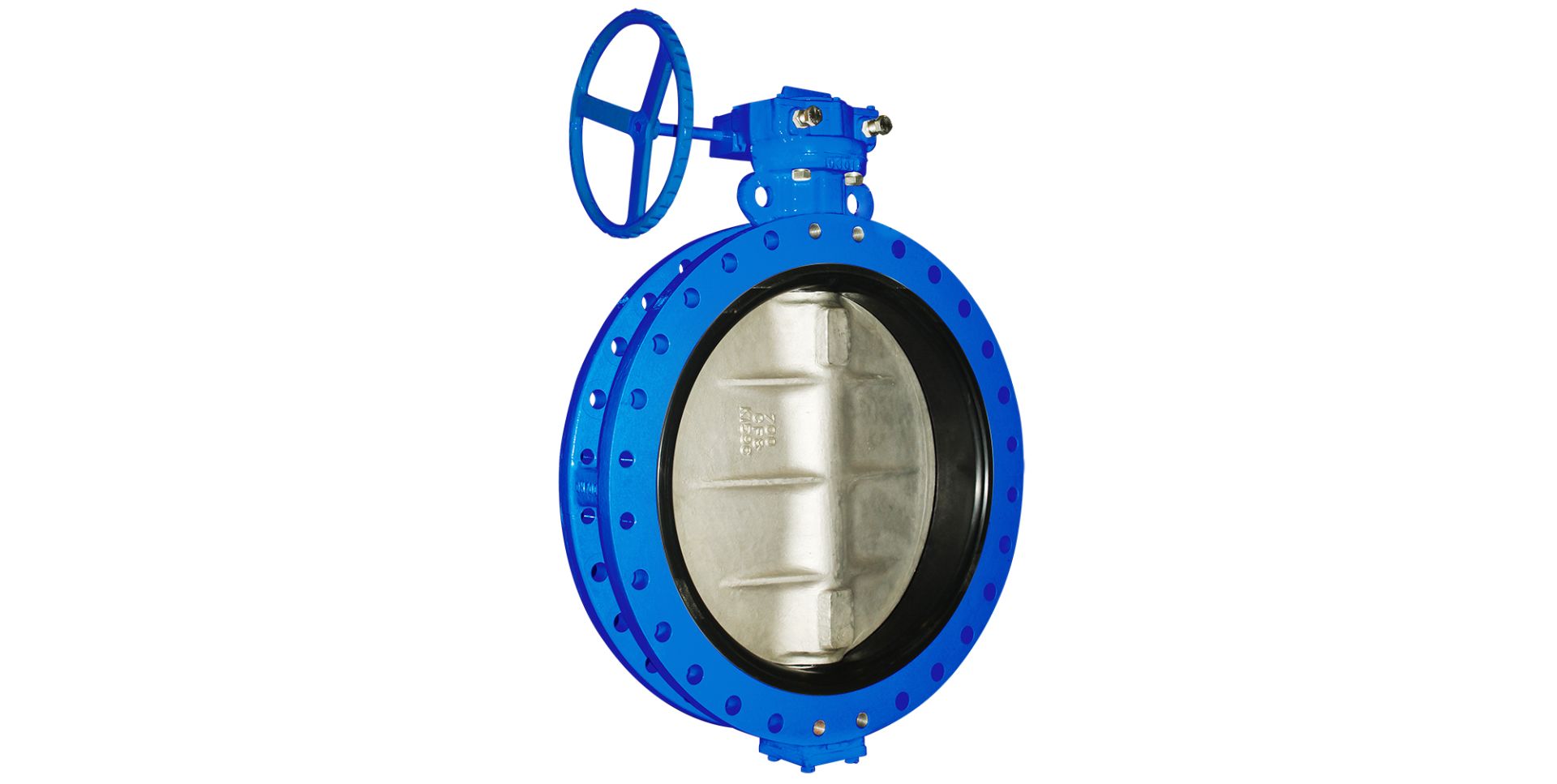

For DN350 and above, or water works / pump stations ® Select VF-737 (Flanged Type)
**VF-730, VF-733 and VF-737 belong to the same Centric Butterfly Valve series.
Selection depends on installation method, pipe size and maintenance requirements.

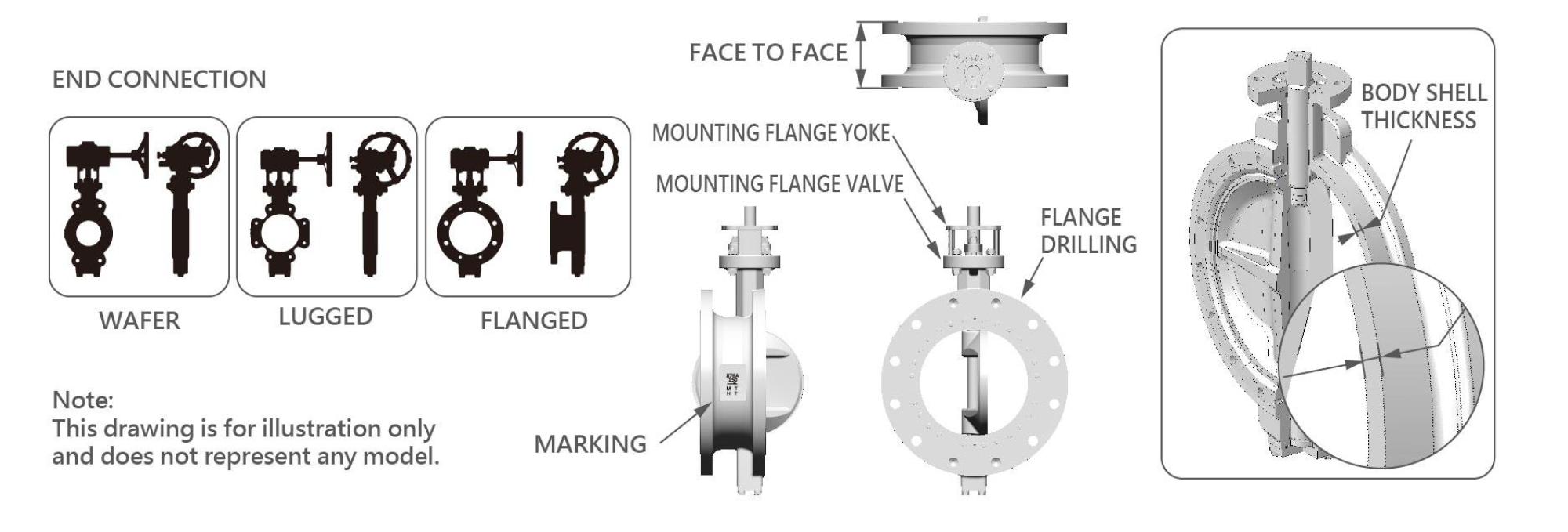

| Model No. | VF-730 | VF-733 | VF-737 |
|---|---|---|---|
| End Connection | Wafer type | Lugged type | Flanged type |
| Flange Drilling | ANSI 125/150 BS Table E. JIS 10K. PN10. PN16. |
ANSI 125/150 BS Table E. JIS 10K. PN10. PN16. |
ANSI 150 JIS 10K. PN10. PN16 |
| Size | 1 1/2"-40" (40mm-1000mm) |
1 1/2"-24" (40mm-600mm) |
14"-72" (350mm-1800mm) |
| Typical Application | HVAC, General Industry | Dead-End, EPC Projects | Water Works, Pump Stations |
Specifications
| Size Range 1 1/2"- 72" | DN 40 - DN 1800 |
Face-to-Face API 609 | ISO 5752 | AWWA C504(54"-72") |
| Tempture Range -20°C ~ 204 °C | -4°F ~ 400°F |
Marking Standard MSS-SP-25 |
| Pressure Ratings 125 LB | 150 LB |
Design Flange 125 LB | 150 LB BS Table E | JIS 10K | PN10 | PN16 |
| Body Styles Wafer | Lug | Double Flanged |
Testing Standard ISO 5208 | AWWA C504 (54"-72") |
| Seat Type Soft Seat |
ABS ABS Steel Vessel Rules 1-1-7/7,4-6-2/5.11 |
| Body Wall Thickness AWWA C504 | ASME B16.34 |
Marine Class Approvals ABS | CR |
| Operator Mounting Flange ISO 5211 |
|
| Design Flange ASME B16.34 | ISO 5208 | AWWA C504 |
Customization Options
Application
Customization Options
-
Size & Materials
Special sizes and alloys available upon request to meet specific temperature and fluid requirements. -
Anti-Condensation
Prevents condensation on the valve body in low-temperature or high-humidity environments, ensuring stable performance. -
Fully Encapsulated Rubber Disc
Disc fully covered with rubber for maximum corrosion resistance in highly aggressive fluids.
Performance & Testing Facilities
-

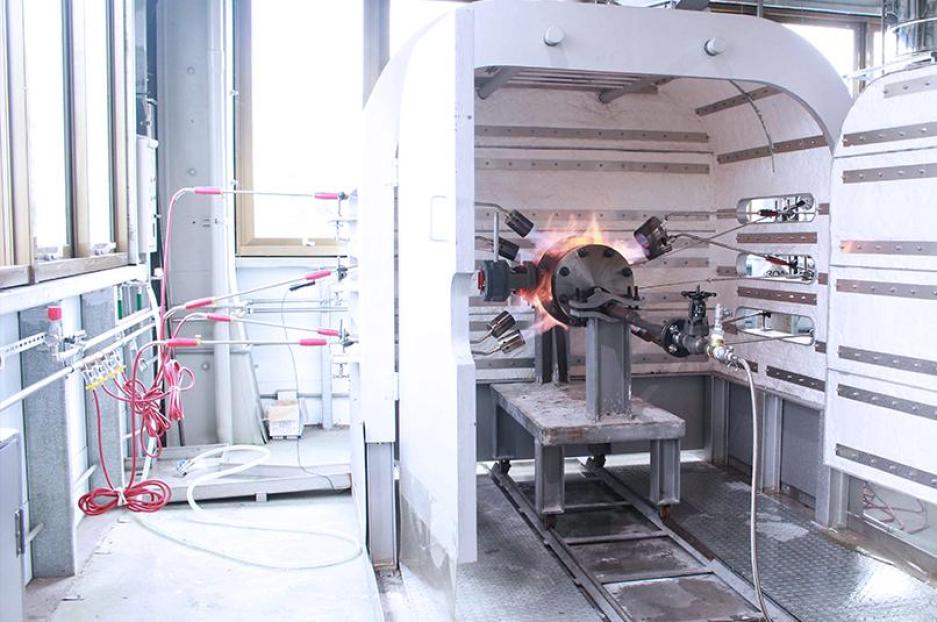

Fire Testing Laboratory
Simulates real fire scenarios to evaluate pressure resistance and fire-safe integrity. -

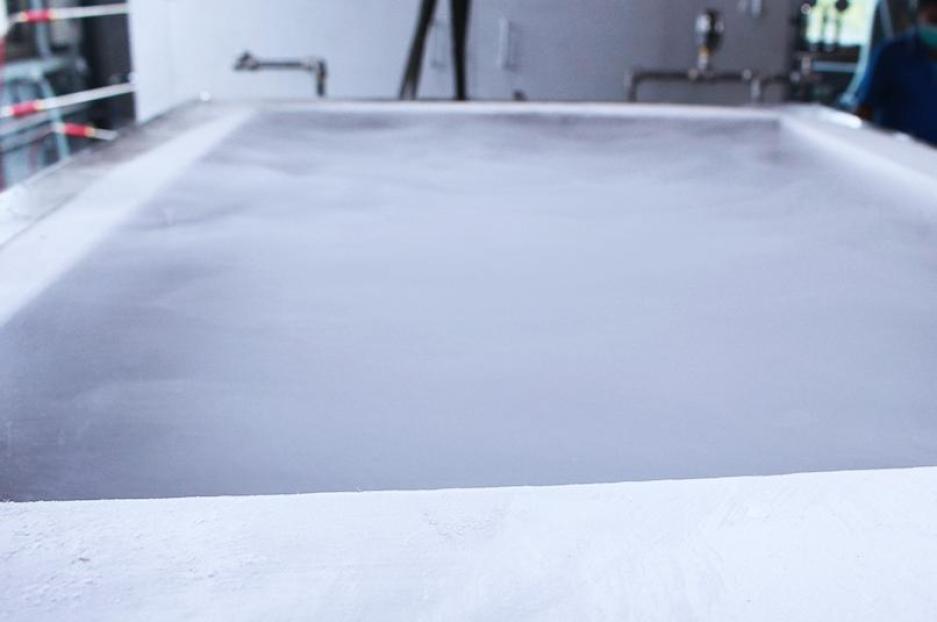

Cryogenic Testing
Performs valve functionality tests at cryogenic temperatures down to -196°C, ensuring product reliability.
-

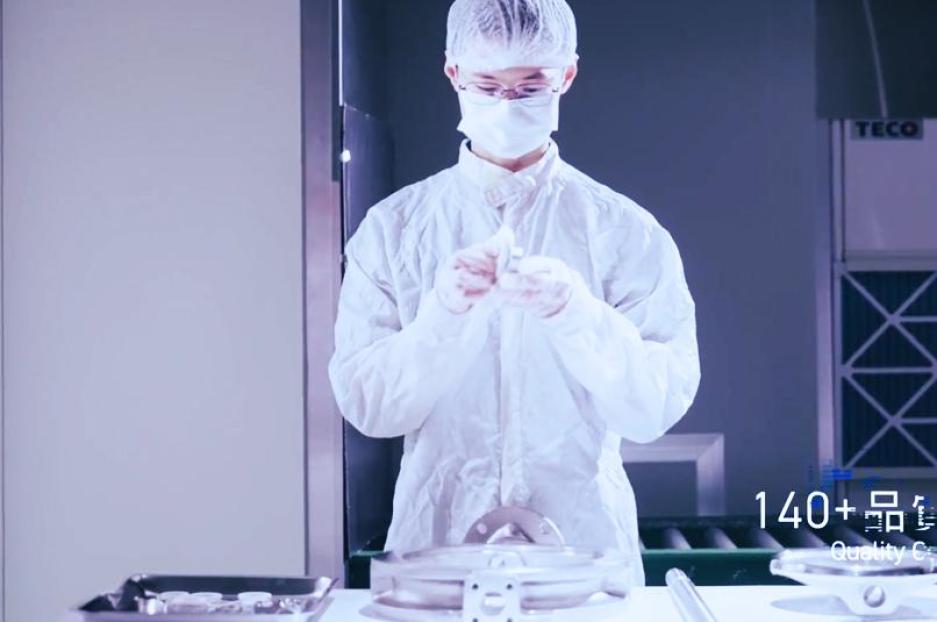

ISO-Class Clean Room
Supports oil-free cleaning and polishing for internal surfaces, meeting clean-service requirements.
-
Cycle Life Testing
Verifies long-term durability through repeated opening/closing cycles under simulated service conditions. -

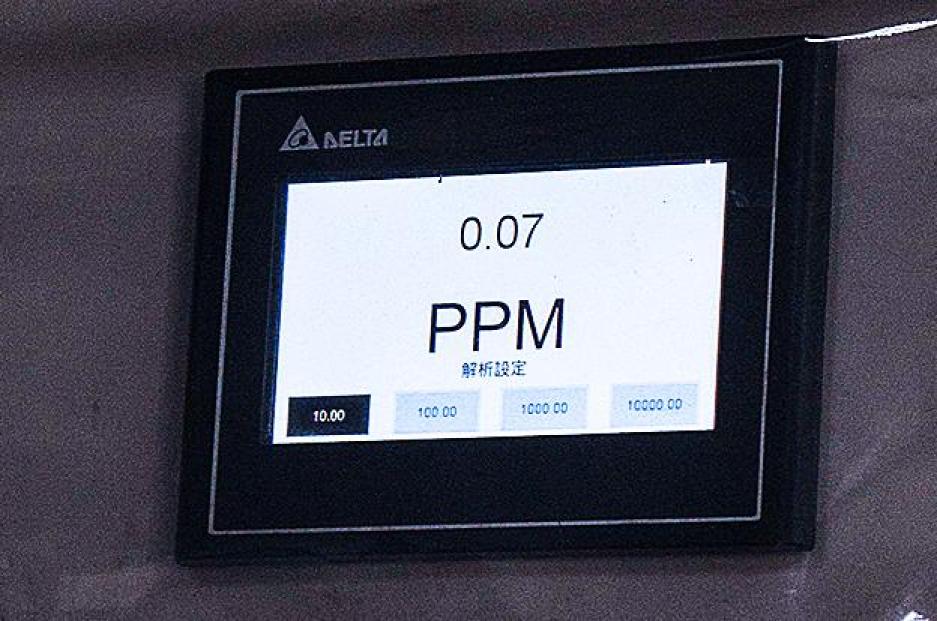

Emissions Testing
Assesses fugitive emissions in control valves under volatile or hazardous fluid environments. -

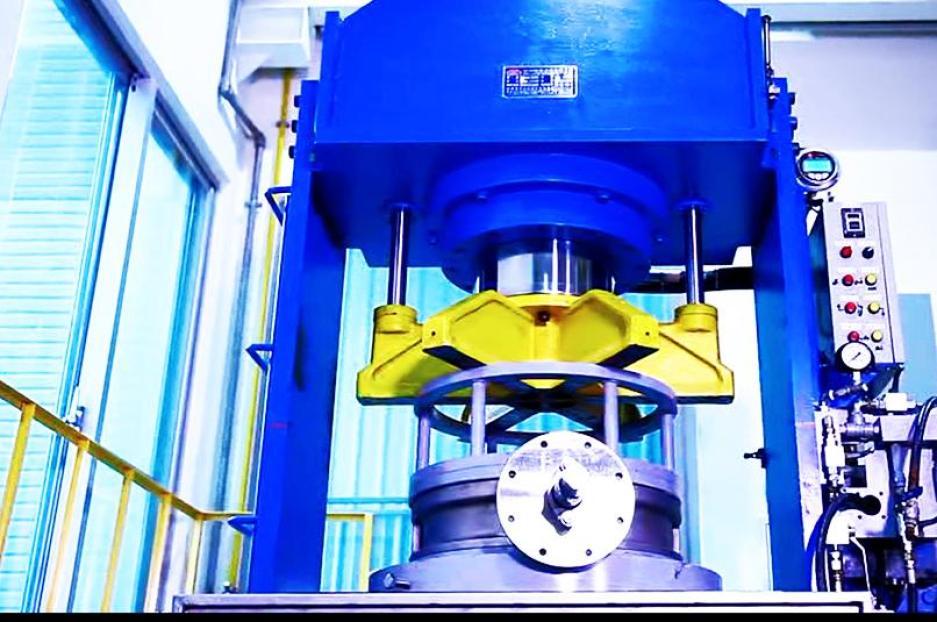

Pressure Testing
All valves undergo full hydrostatic testing to meet both international standards & customer specifications.
